Omni-ID Exo 400 High Temperature RFID Etiket (144-US)

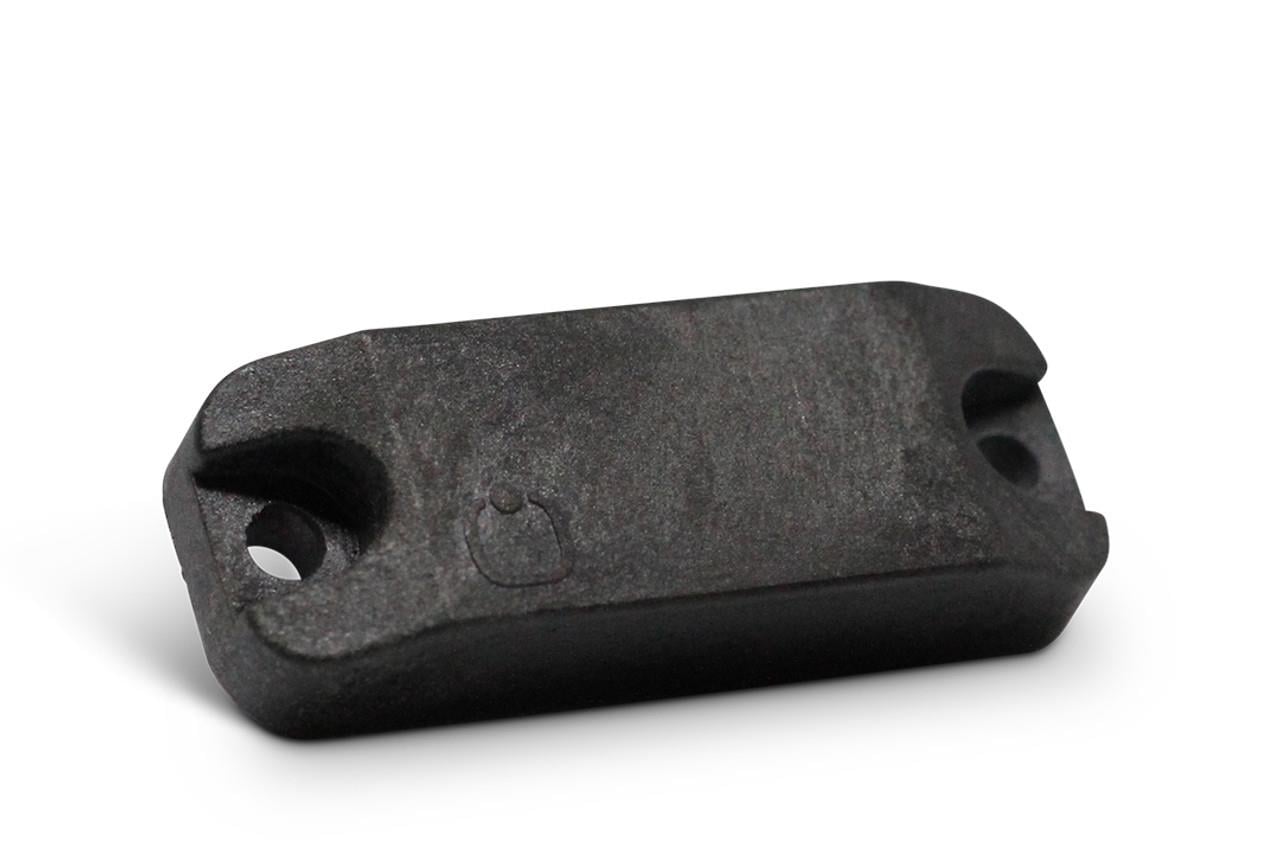

Omni-ID Exo 400 High Temperature RFID Tag

Features

IP 68 rated.
Tough encapsulation.
High impact and vibration performance.
Can be deployed in harsh industrial and outdoor environments.
Common applications: automotive paint booths, jigs and tools, oil and gas drilling and pipes, and food processing containers.

ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: (855-865 MHz)
IC Type: Alien Higgs 3
Memory: EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content: Unique, randomized number
Max Read Distance -Fixed Reader: Up to 4 m (13.1 ft)
Max Read Distance - Handheld Reader: Up to 2 m (6.6 ft)
Applicable Surface Materials: Optimized for metal substrates

MECHANICAL:
Tag Form Factor: Hard tag
Tag Materials: Durable thermoplastic material
Attachment Method: Foam adhesive

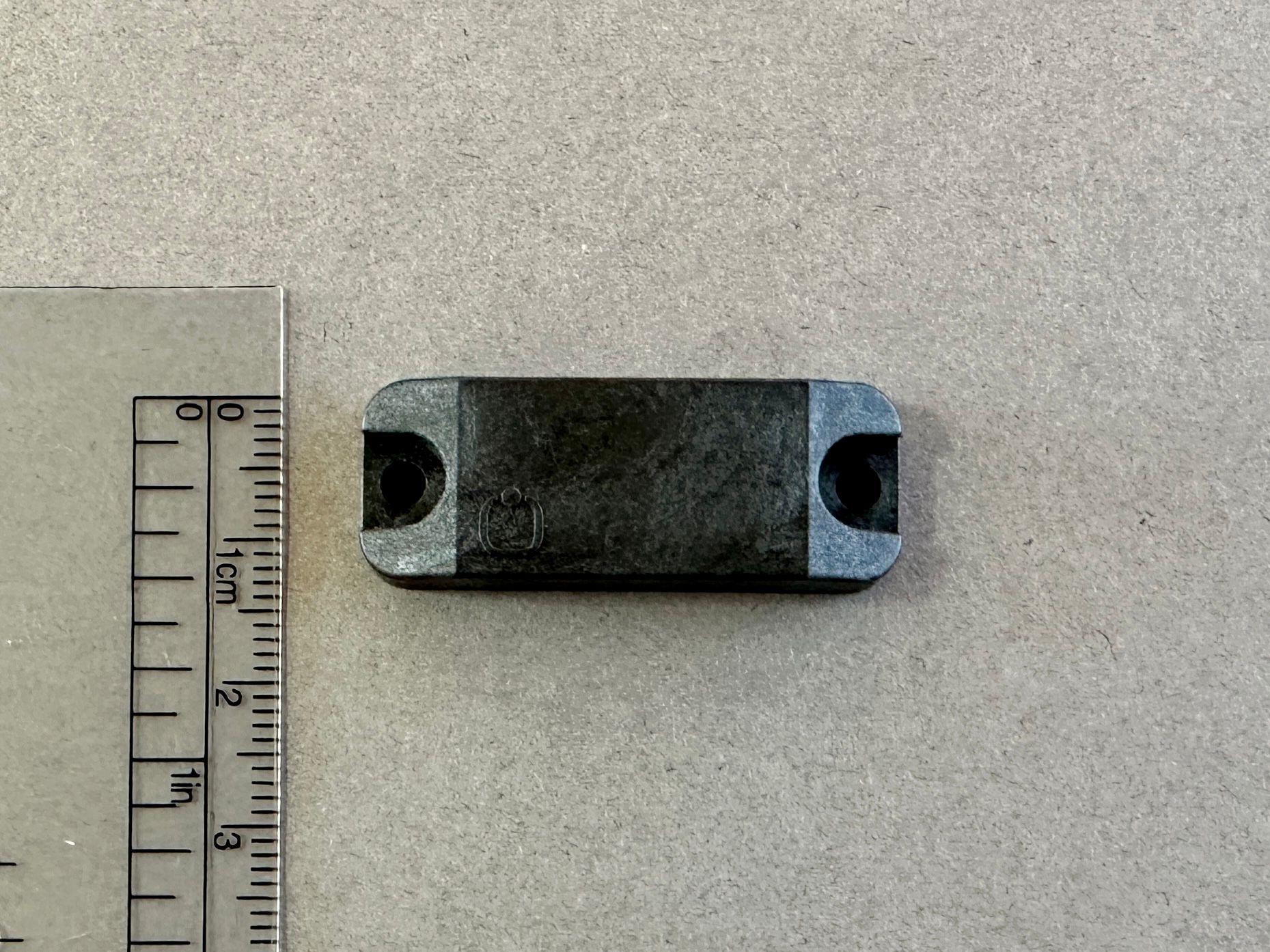

Dimensions: 37 x 14 x 5.9 mm (1.46 x 0.55 x 0.23 in)
Weight:     5.7 g

ENVIRONMENT:
Operating Temperature: –20 ° to +85°C (–4 ° to +185°F)
Maximum Operating Temperature: –20 ° to +235 °C (–4 ° to +455°F)
