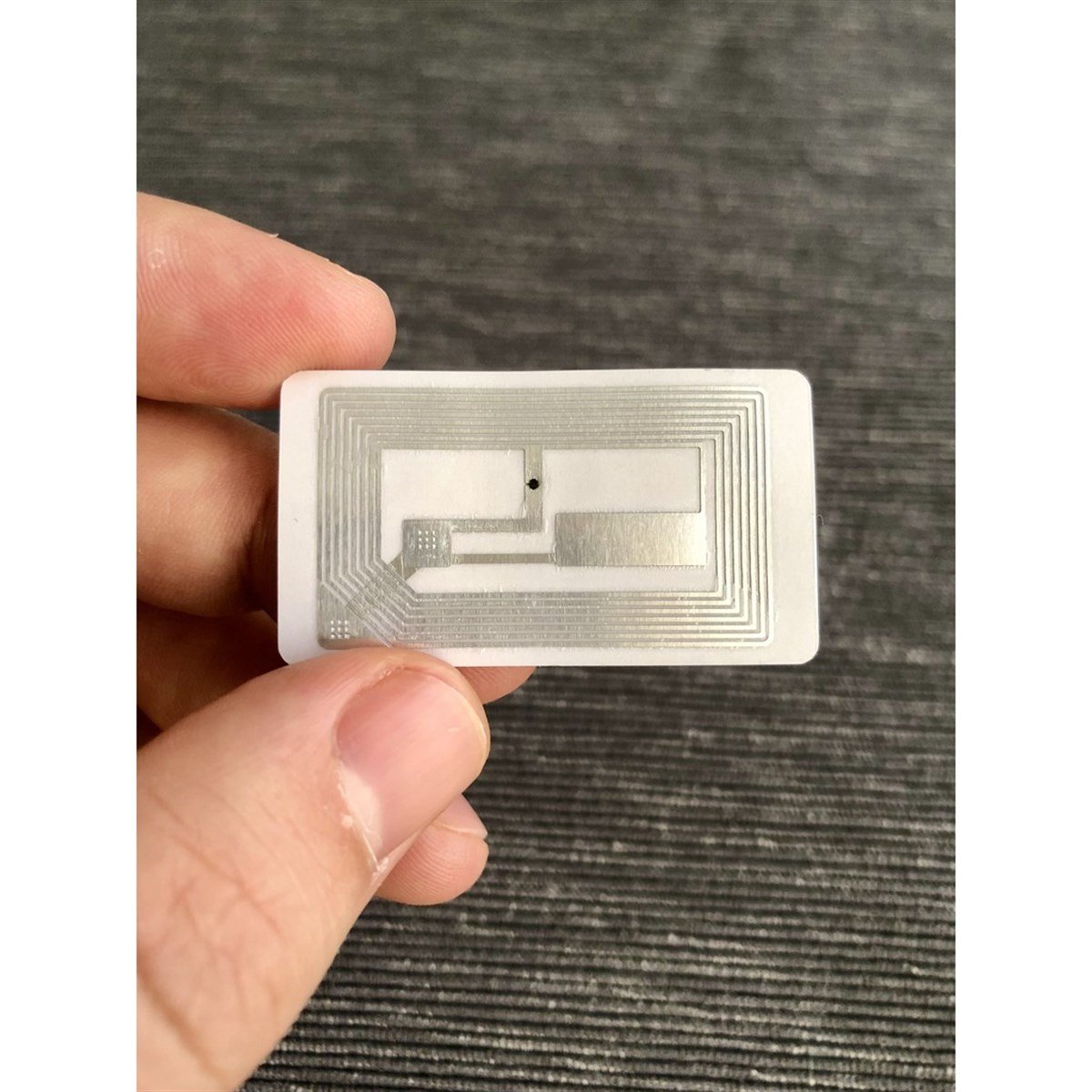

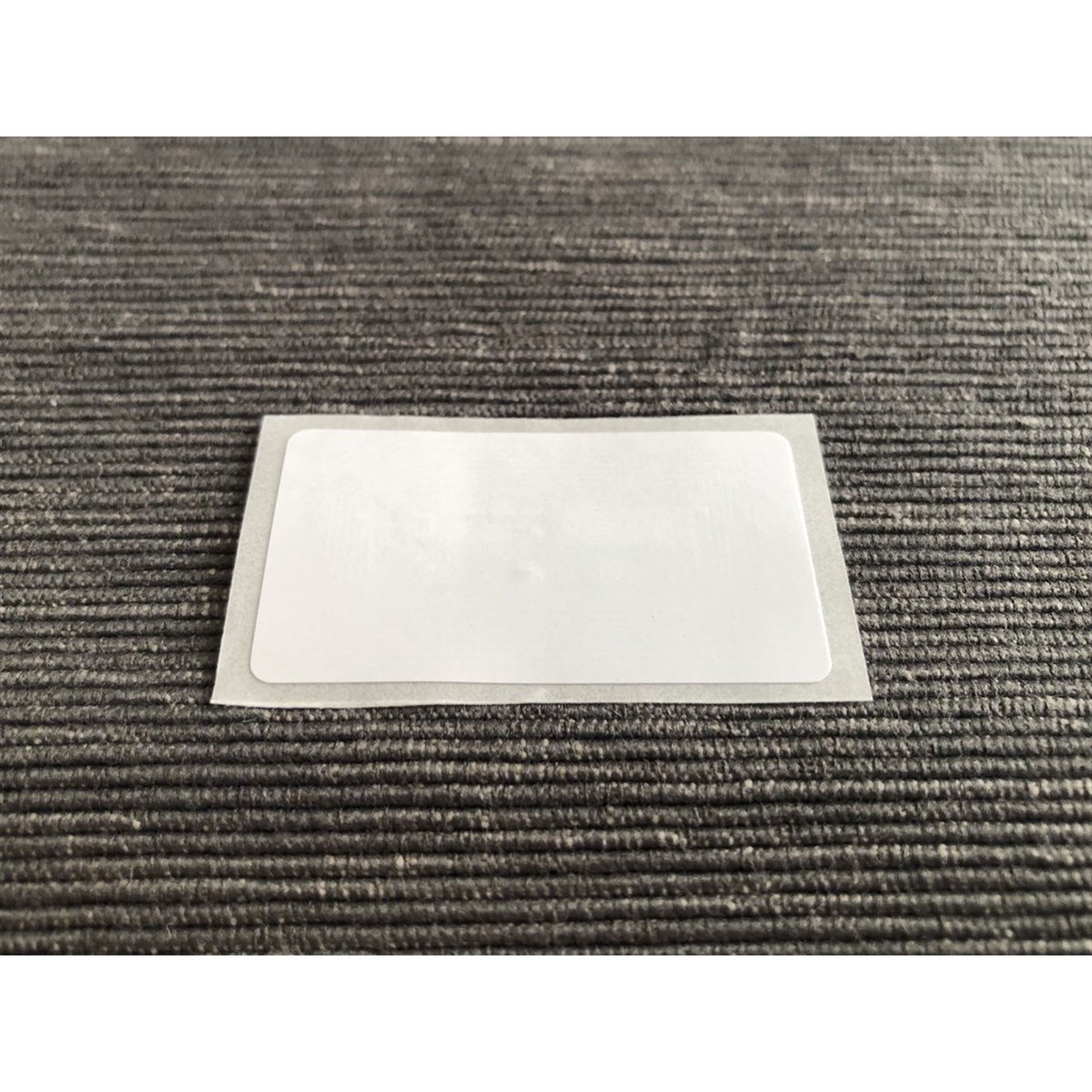

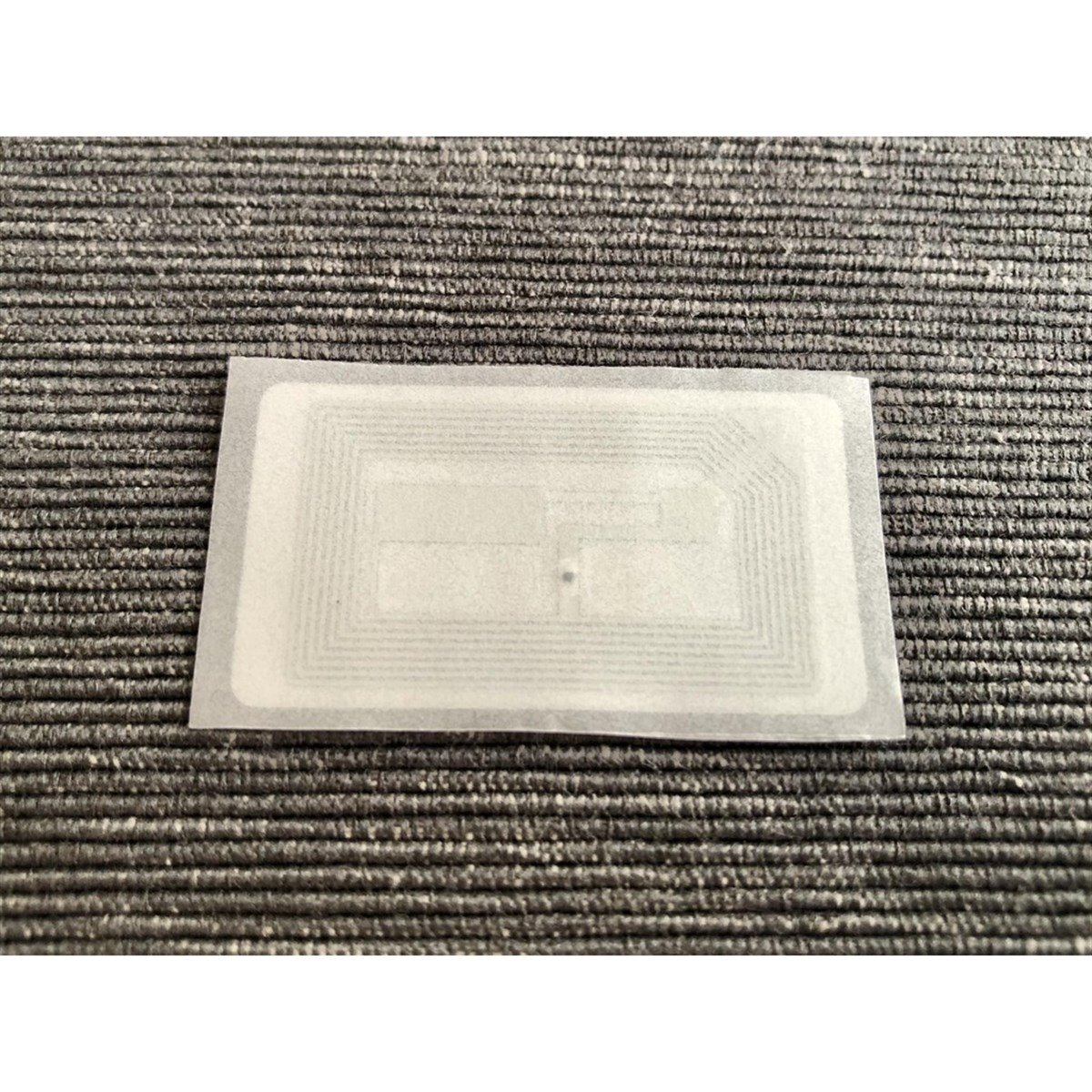

1K 13.56Mhz RFID Etiket (RB25)

1K 13.56Mhz RFID Etiket

Product dimensions

Antenna size: 25*35mm
Die-cut size: 25*38mm
Vertical gap(antenna): 8mm
Lateral gop(antenna): 25mm
Inlay roll width: 47mm

Electrical specifications

IC:F08(NXP S50 compatible)
Frequency: 13.56MHz
Protocol: ISO 14443
Memory: 1k byte

Delivery information

Surface material: Paper or PET
Inner code size: 76mm

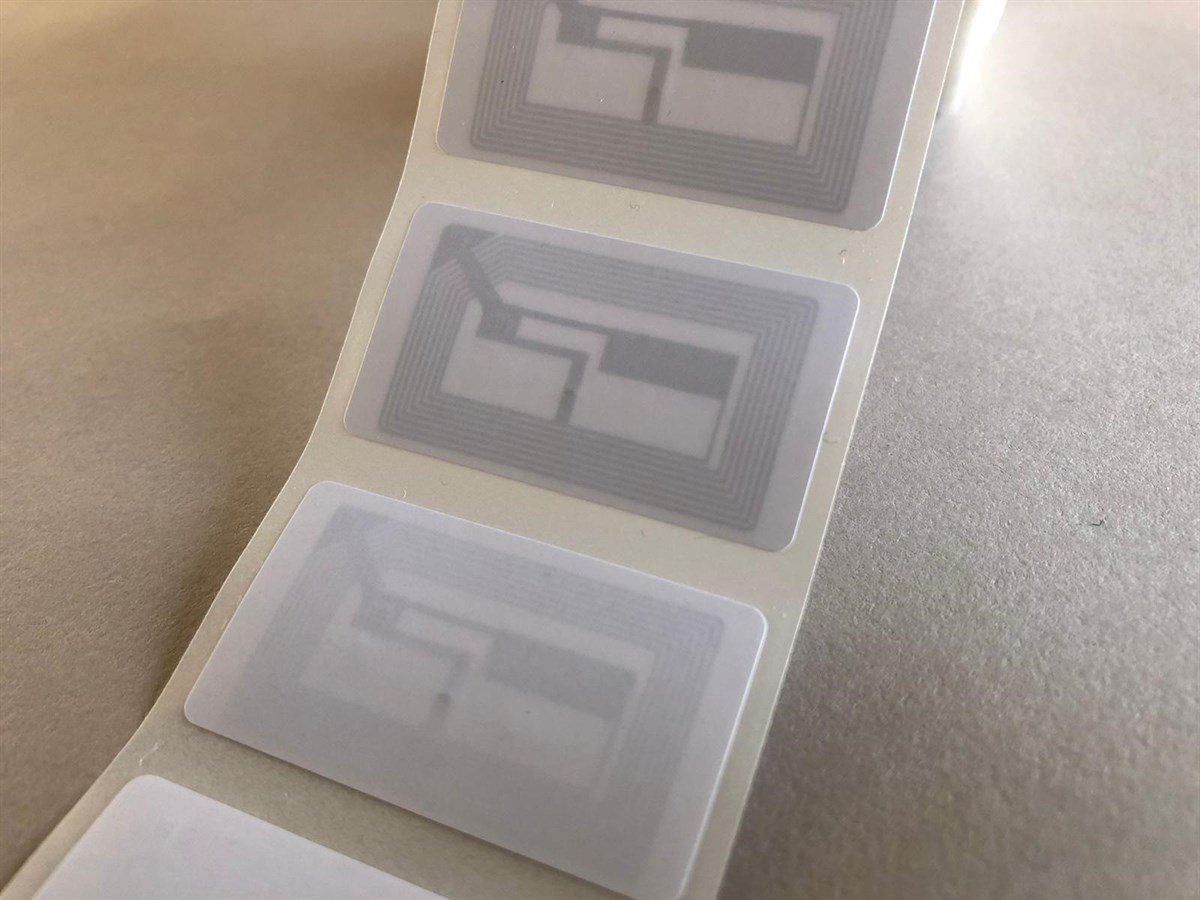

Quantity per roll: 1,000-5,000pcs(dry inlay);1,000-4,000pcs(wet inlay/label)
Unwinding: Chip side up
Quality: 100% tested, NG replaced


Environment

Operating: - 40 to 85 degree
Storage: - 5 to 30 degree
Data retention: 100,000 cycles
