C72 UHF RFID El Terminali Android (RD490)

İndirim Oranı : %29 İndirim

Fiyat : 1,400.00$ + KDV

İndirimli : 989.00$ + KDV

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

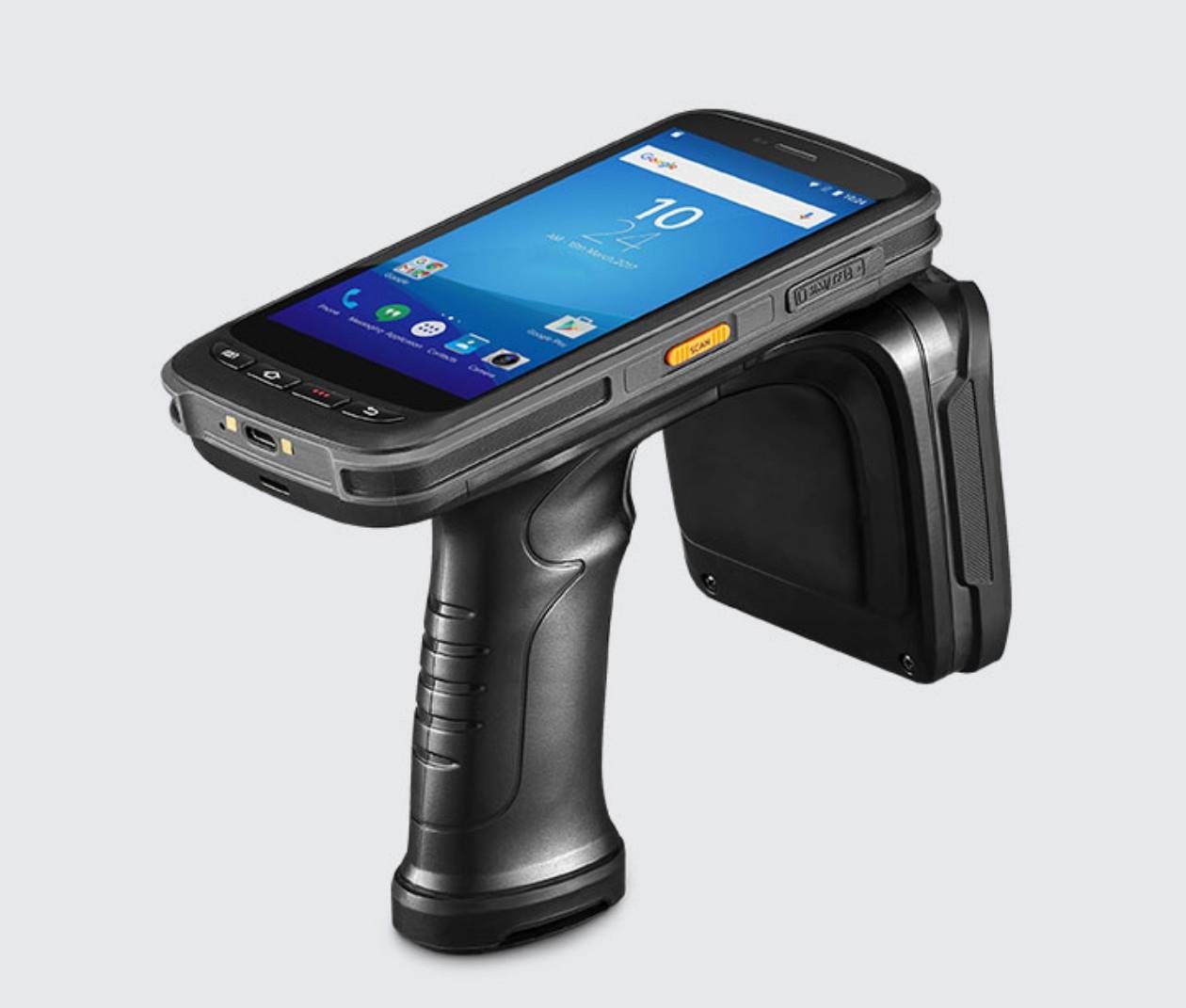

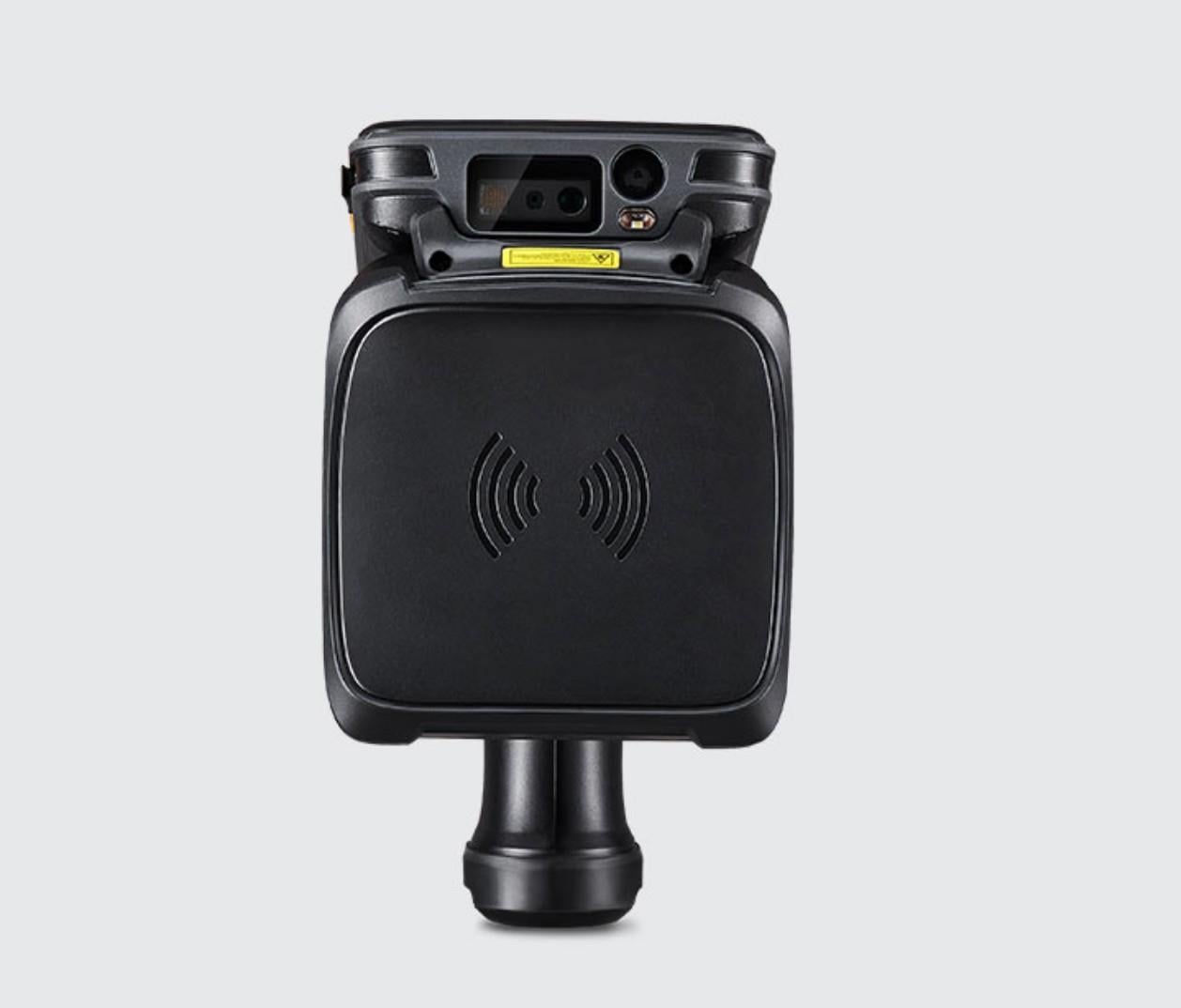

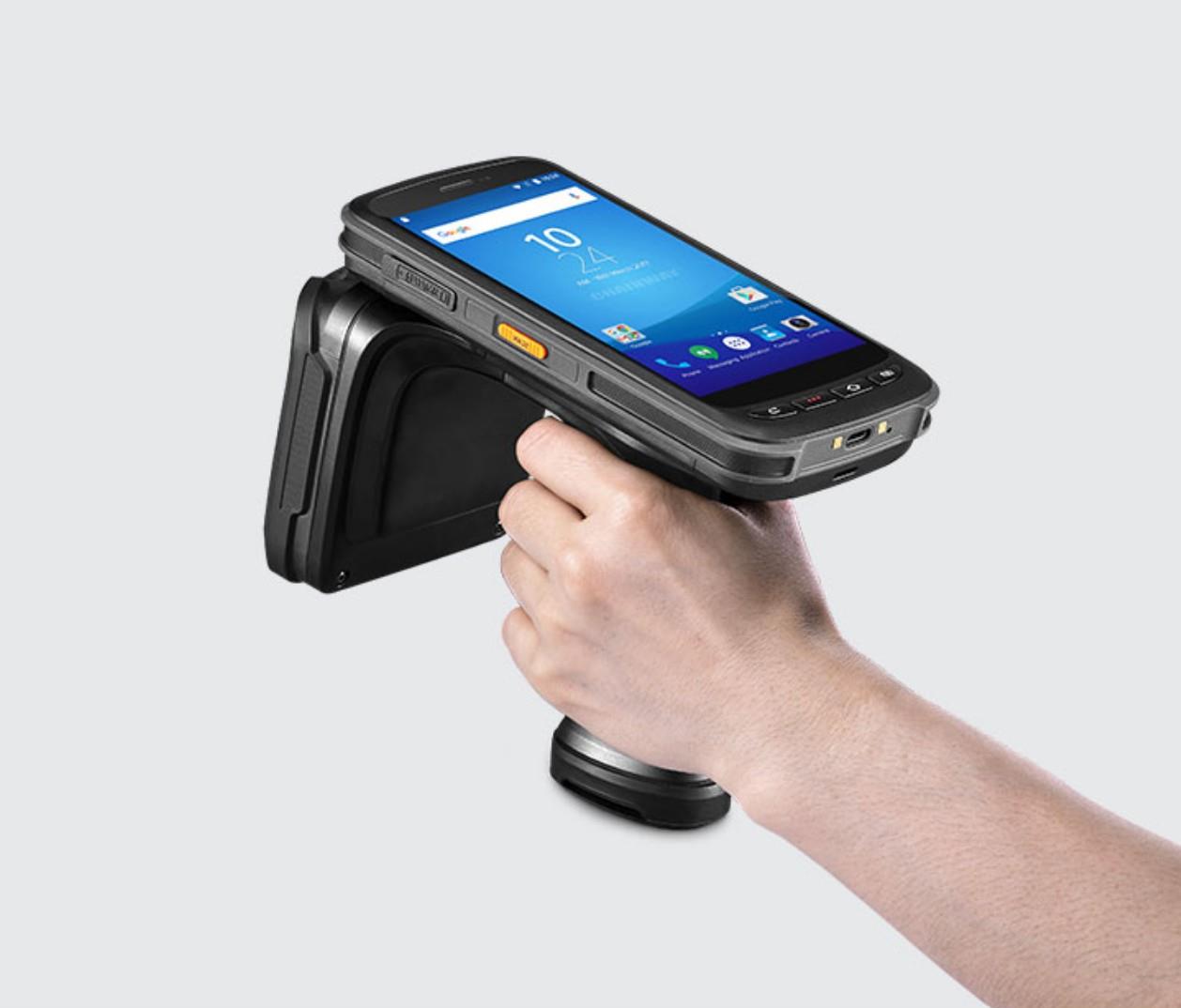

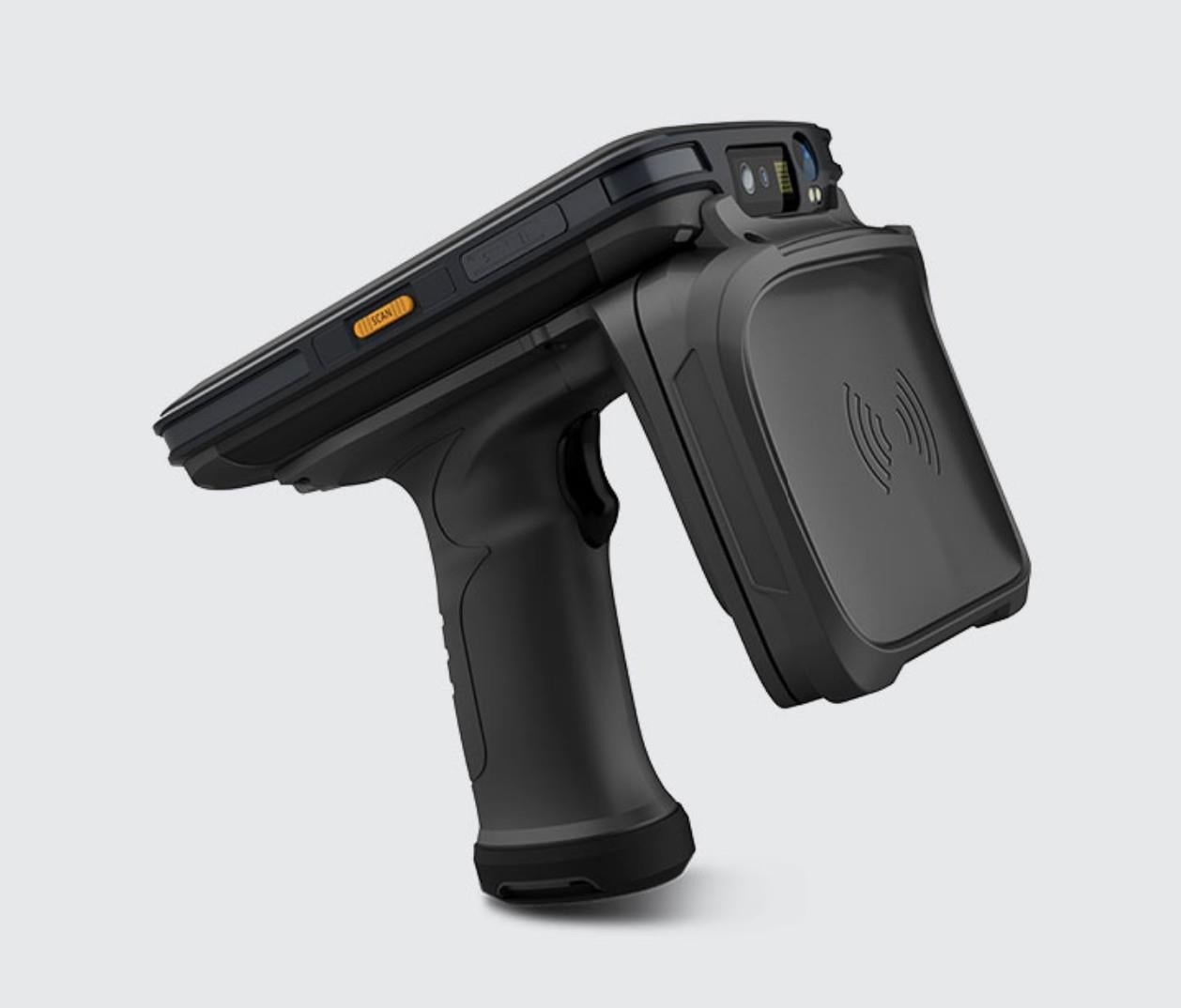

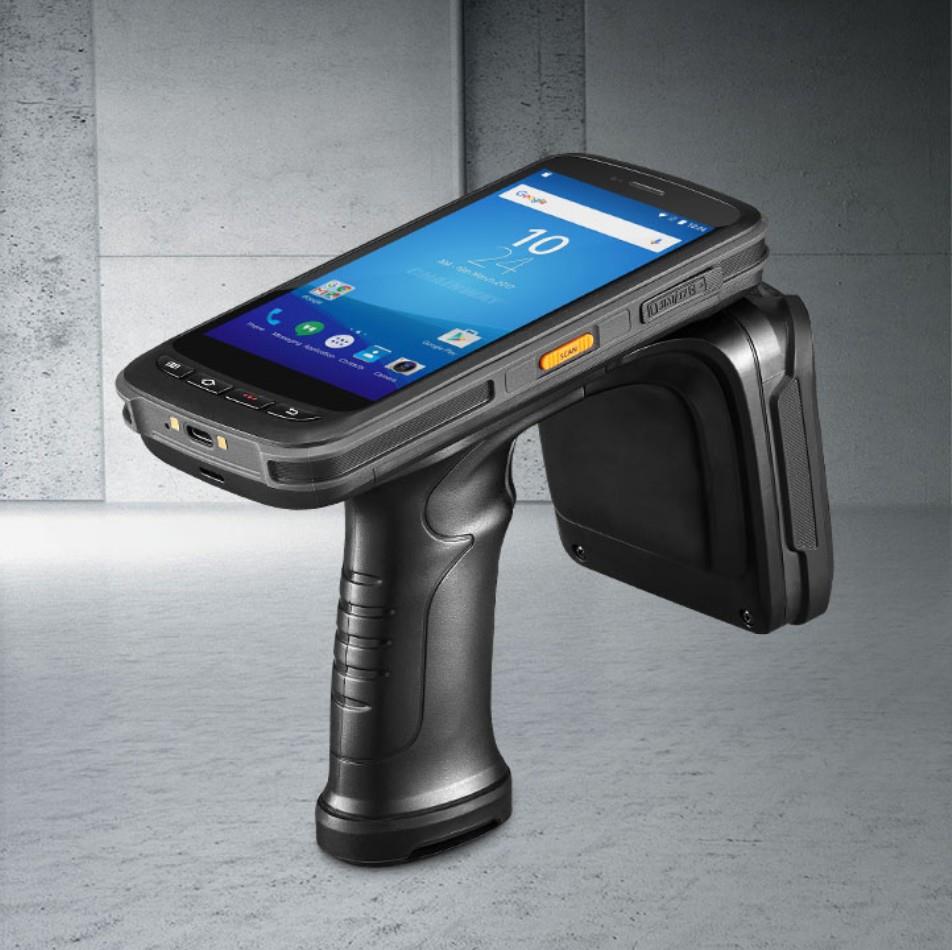

C72 UHF RFID El Terminali Android

C72 UHF RFID El Terminali Android, taşınabilirliği ve yüksek performanslı UHF RFID okuma kapasitesiyle öne çıkan bir mobil veri toplama cihazıdır. Android işletim sistemiyle çalıştığı için kullanıcı dostu bir arayüze sahiptir ve çeşitli uygulamaları kolayca destekler.

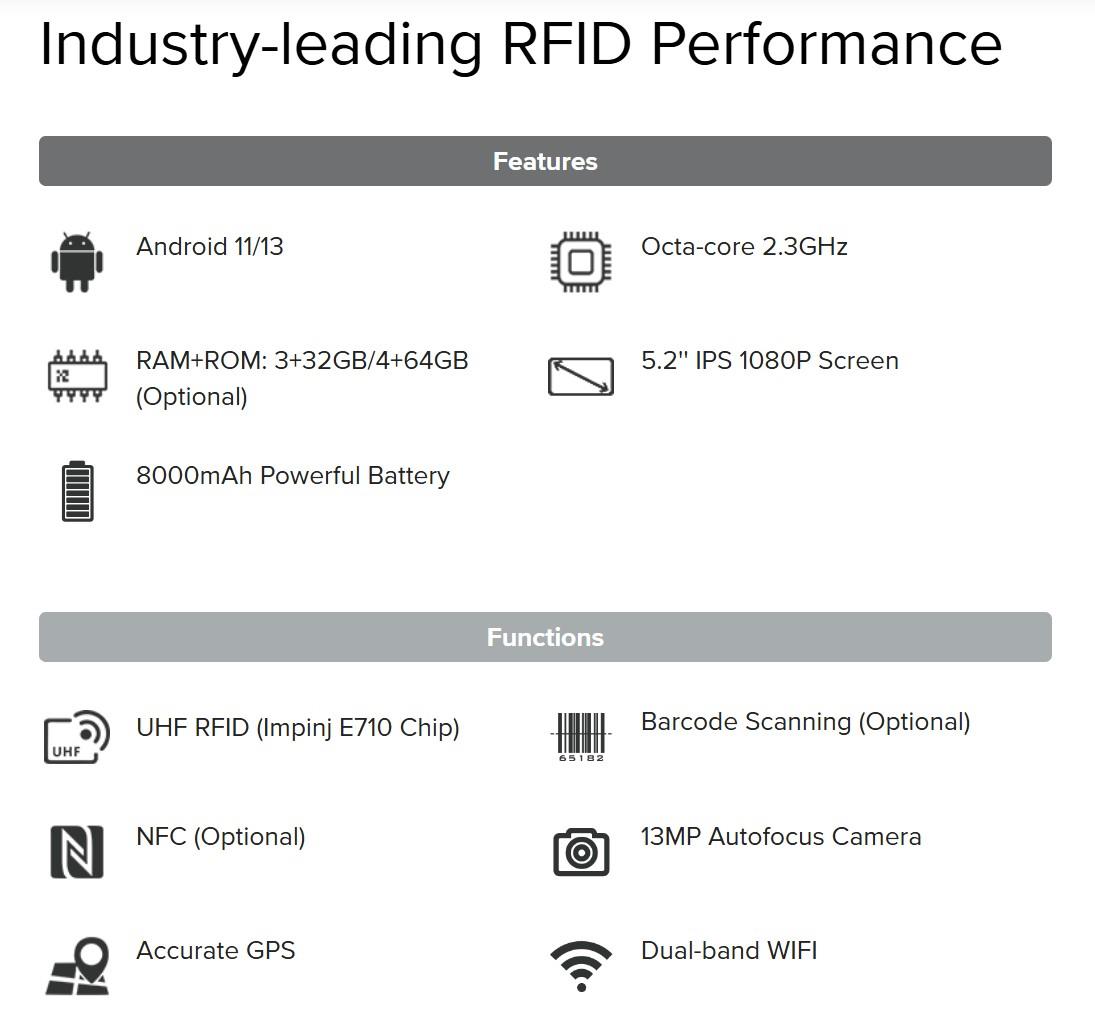

Başlıca Özellikler:

   •   UHF RFID Okuyucu: Geniş bir okuma mesafesi ve hızlı veri yakalama kabiliyeti sunar.
   •   Android İşletim Sistemi: Modern uygulamalar ve esnek entegrasyon imkanı sağlar.
   •   Dayanıklı Tasarım: Zorlu çalışma ortamlarına dayanıklı, sağlam bir yapıya sahiptir.
   •   Kablosuz Bağlantılar: Wi-Fi, Bluetooth gibi bağlantı seçenekleriyle verilerin hızlı aktarımını destekler.
   •   Geniş Uygulama Alanı: Lojistik, perakende, sağlık, envanter yönetimi gibi alanlarda kullanılabilir.

C72, hafif ve ergonomik yapısıyla taşınabilir bir çözüm sunarken, hızlı ve güvenilir RFID veri toplama ihtiyacını karşılar. Özellikle RFID teknolojisine dayalı iş süreçlerini optimize etmek isteyen kullanıcılar için ideal bir seçimdir.

Physical Characteristics
Dimensions	164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Weight	654 g / 23.07 oz.
Display	5.2'' IPS LTPS 1920 x 1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification	Sound, LED indicator
Expansion Slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces	USB 2.0 Type-C, OTG, Type-C headphones supported
Audio	1 microphone；1 speaker；receiver
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Light sensor, proximity sensor, gravity sensor

Communication
WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN	2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
Note	*C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment
Operating System	Android 11/13; GMS, 90-day security updates, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported.
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance
CPU	Octa-core, 2.3GHz
RAM+ROM	3GB + 32GB / 4GB + 64GB (optional)
Expansion	Supports up to 256GB Micro SD (TF) card

User Environment
Operating Temp.	4 °F to 122 °F / -20 °C to 50 °C
Storage Temp.	-40 °F to 158 °F / -40 °C to 70 °C
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	Host IP65 per IEC sealing specifications
ESD	±15 KV air discharge, ±6 KV conductive discharge

Barcode Scanning
1D Linear Scanner	Honeywell: N4313
2D Imager Scanner	Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional

UHF RFID
Engine	CM710-1 module based on Impinj E710
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X	Supported
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11

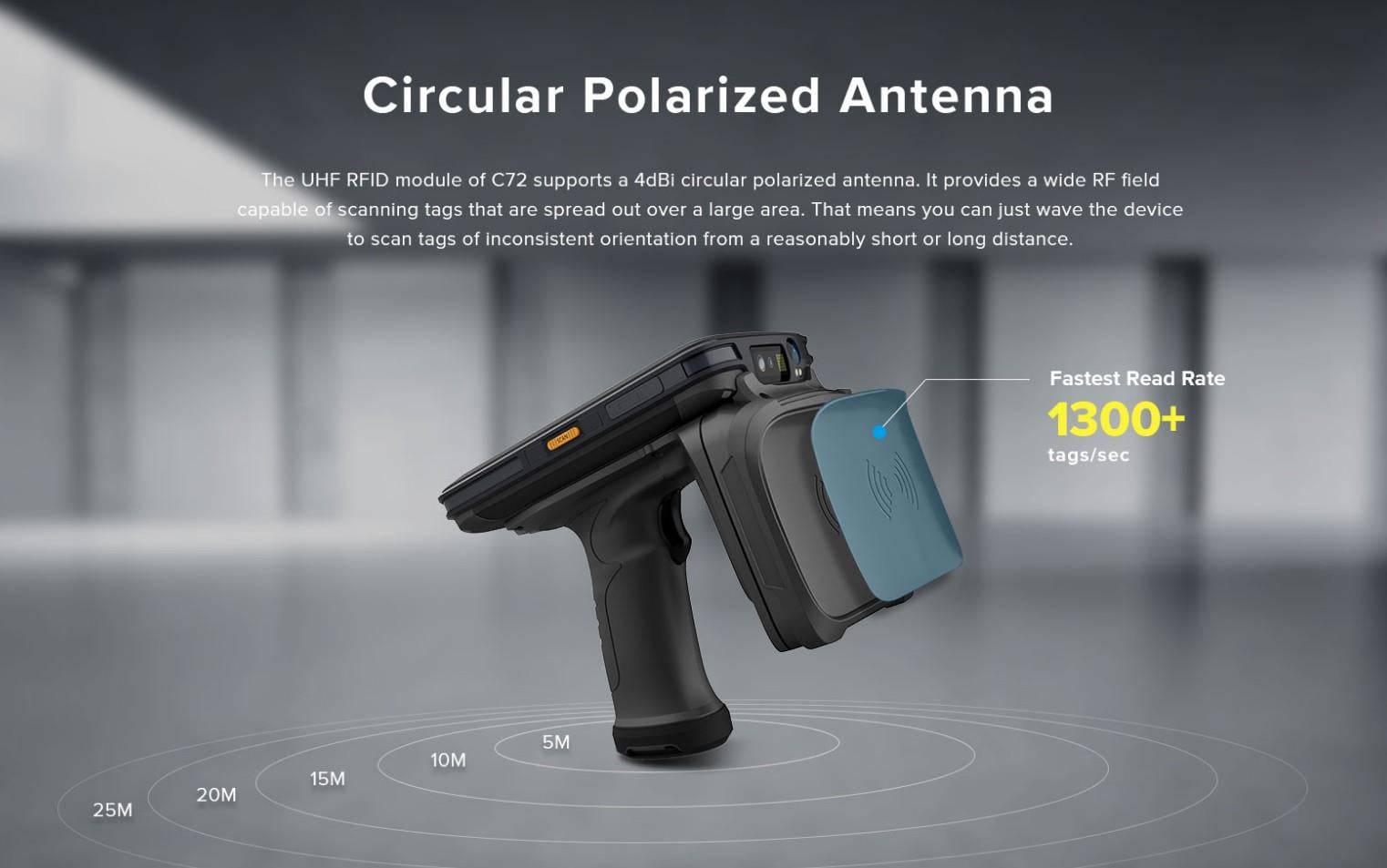

Antenna	circular polarization (4 dBi)
Power	1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
Fastest Read Rate	1300+ tags/sec (circular polarization)
Max Read Range	26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note	*Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Note2	*This function is optional

Camera
Camera	13 MP Autofocus with flash

NFC
Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm
Note	*This function is optional
