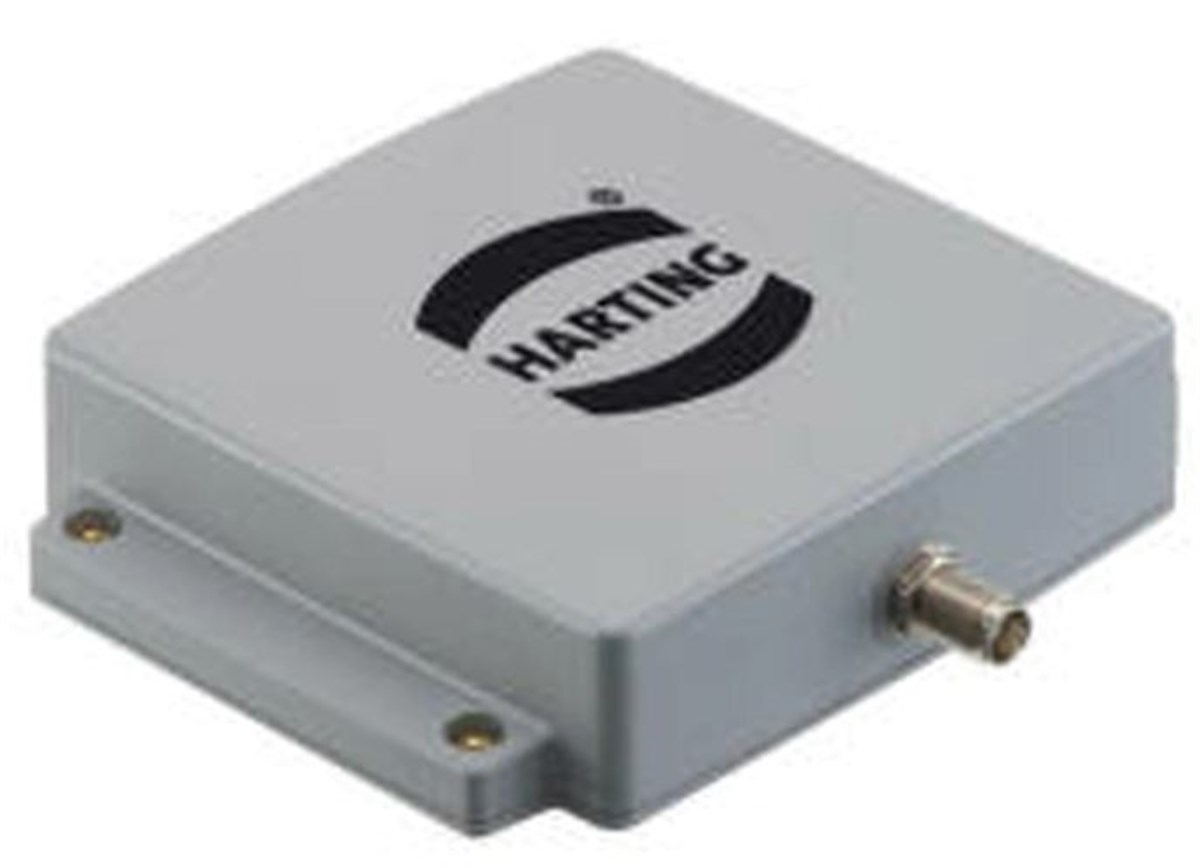

HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna (FCC/ETSI)
The HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna is a compact, circular polarized flat panel antenna designed to withstand ruggedized environmental applications. The rugged design of this antenna delivers a high IP 67 rated protection class rating allowing for use in outdoor environments. With a 2 m / 6.6 ft read range and a weather-resistant antenna cover, this antenna is an ideal solution for industrial environments with near-field and far-field applications.
Equipped with a read range of up to 2 m and an aperture angle of 100°, the HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna is a suitable solution for smart infrastructure and asset management applications.
Features
* 100° aperture angle.
* Very compact design.
* High IP 67 protection.
* TNC Female connector.
* Suitable for outside areas.
* Medium read range (0.2 m - 2 m).
* Tough, weather-resistant polymer blend antenna cover.
* Suitable for harsh environments and outdoor applications.
* Application fields: smart infrastructure and asset management.
* Ideal for industrial environments with near-field and far-field applications.
Product Details
ELECTRICAL:
Operating Frequency: FCC (902-928 MHz), ETSI (865-870 MHz)
Polarization: Circular
Gain: 2.5 dBic (US), 4 dBic (EU)
Max Read Distance: Up to 2 m (6.6 ft) - Strongly depending on reader, configured power, and tags
Elevation Beamwidth: 100°
Azimuth Beamwidth: 100°
MECHANICAL:
Connector Type: TNC female (connects to TNC male)
Cable: Not Included
Mounting: 4 Through-holes Diameter 4.2 mm for M4 Screws
Dimensions: 156 x 126 x 25 mm (6.14 x 4.96 x 0.98 in)
Weight: 0.30 kg (0.66 lbs)
ENVIRONMENT:
IP Rating: IP 67
Operating Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
