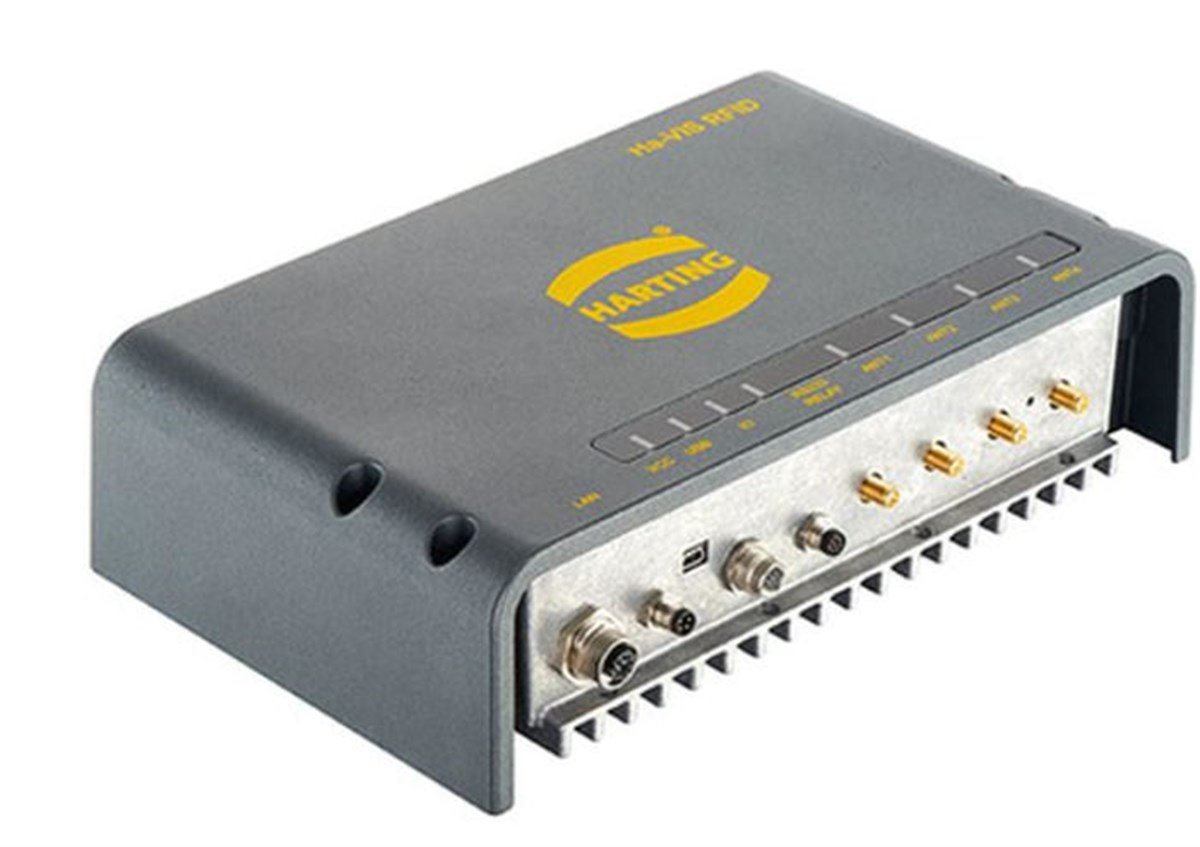

HARTING Ha-VIS-RF-R400 UHF RFID Reader
The HARTING Ha-VIS RF-R400 is a powerful 4 port UHF RFID reader. With the robust M12 (Ethernet) and M8 (power, IO and serial) connectors, this reader is designed for the harsh industrial and railway environment. Even in time-critical applications, multiple antennas could be used with this reader due to its internal high-speed multiplexer.
Equipped with an internal high speed multiplexer, the HARTING Ha-VIS-RF-R400 is a robust UHF RFID reader designed to withstand harsh industrial and railway environments.
Features
Applicable in rough, metal-containing industrial environments.
Robust aluminum housing.
High transponder population.
Fast multiplexing speed.
Robust M12 and M8 connectors.
Product Details
ELECTRICAL:
Air Interface Protocol: EPC Class 1 Gen 2 (ISO 18000-6-c on request)
Operating Frequency: FCC (902-928 MHz)
Transmit Power: 2 W (Max)
Max Receive Sensitivity: Not published
Max Read Distance: Up to 16 m (52.4 ft)
Max Read Rate: Up to 150 tags
Data Interface: Ethernet, RS 232, USB
GPIO: 2 Inputs, 2 outputs, 2 relay outputs
Power Source: + 24 V DC (±5 %)
MECHANICAL:
Antenna Ports: 4 x female SMA ports (connects to SMA male)
Dimensions: 261.3 x 157.3 x 68 mm (10.28 x 6.19 x 2.67 in)
Weight: 1.8 kg (4 lbs)
ENVIRONMENT:
IP Rating: IP 64 (with protection cap), IP 53 (without protection cap, with rubber plug)
Operating Temperature: -25°C to +55°C (-13°F to 131°F)
APPLICATION INTERFACE:
Host API: HTML interface
Demo Software: Ha-VIS RFID config
