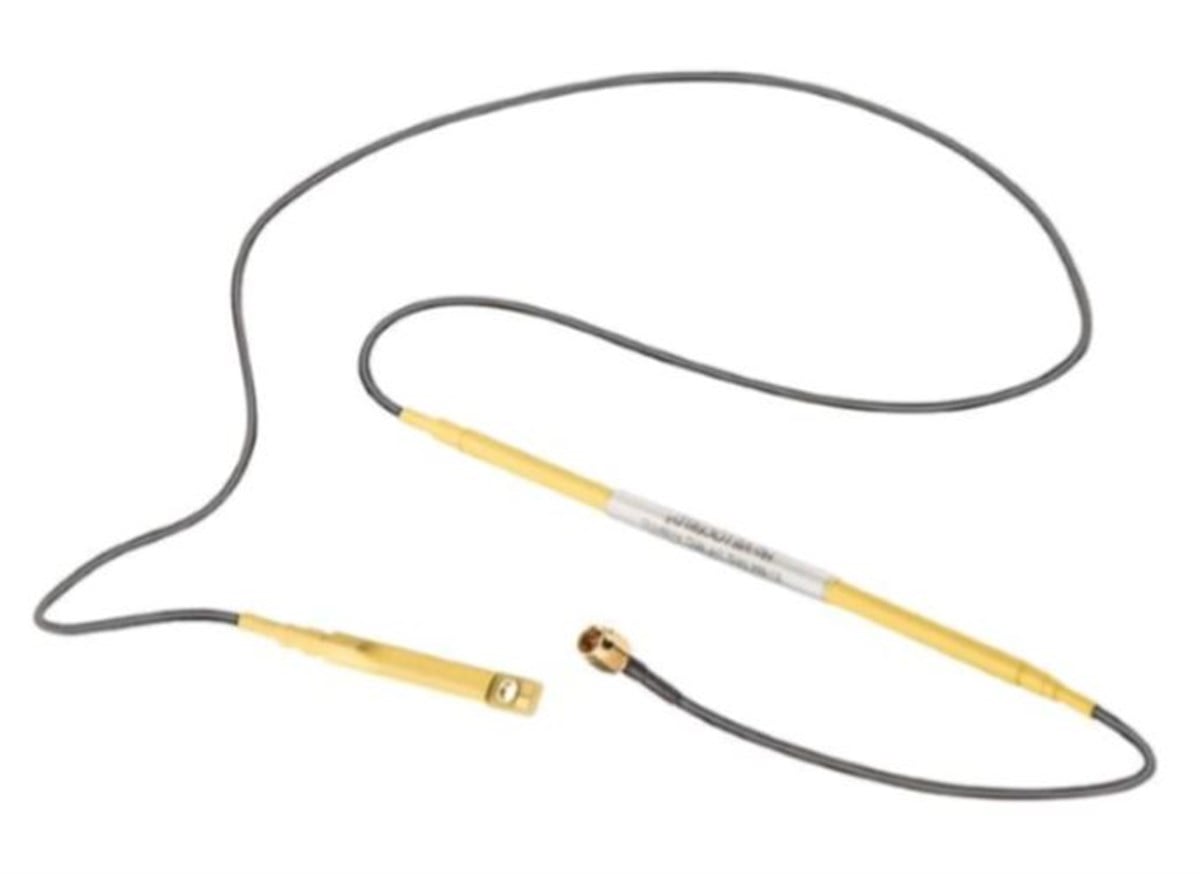

HARTING LOCFIELD Traveling Wave UHF RFID Anten - 3 m
The HARTING LOCFIELD Traveling Wave UHF RFID Antenna allows you to design your own tailored UHF RFID reading zone in almost any arbitrary shape. Instead of installing patch antennas, the coax antenna cable itself becomes the antenna that can be connected to any kind of UHF RFID reader.
Features
* Equipped with the ability to customize and design your RFID reading zone in almost any arbitrary shape.
* No reflections.
* The antenna gain is about -7 dBi depending on exact antenna length.
* Even with 4 W RF power injected into the antenna, the limits of 2 W ERP (EU) or 4 W EIRP (FCC) are not violated.
* SMA Male connector (TNC on request).
* Optimized for: Identification of tools in machines, Door openings and pass throughs, Wireless sensor networks, and Smart shelf / smart work bench applications.
Product Details
ELECTRICAL:
Operating Frequency: FCC (902-928 MHz), ETSI (865-868 MHz)
Polarization: Linear (tags are read in any orientation)
Gain: 7.0 dBi
Max Read Distance: Up to 2 m (6.6 ft) - Strongly depending on reader, configured power, and tags
Elevation Beamwidth: 360 °
Azimuth Beamwidth: 360 °
MECHANICAL:

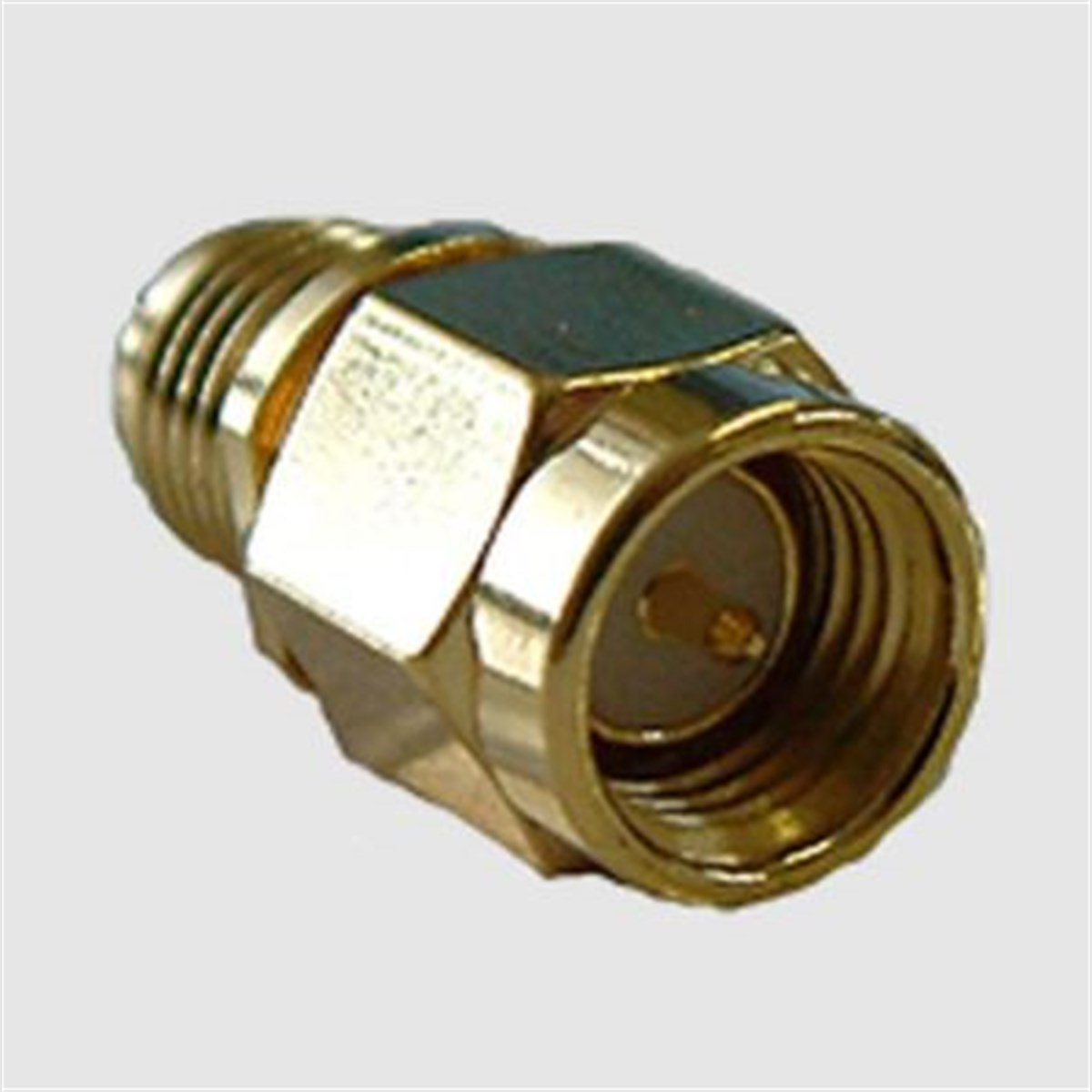

Connector Type: SMA male (connects to SMA female) (TNC on request)
Cable: Flexible, coax antenna cable
Mounting: Can be mounted directly on any non-conducting surface. On conducting surfaces a distance of at least 2 cm is recommended.

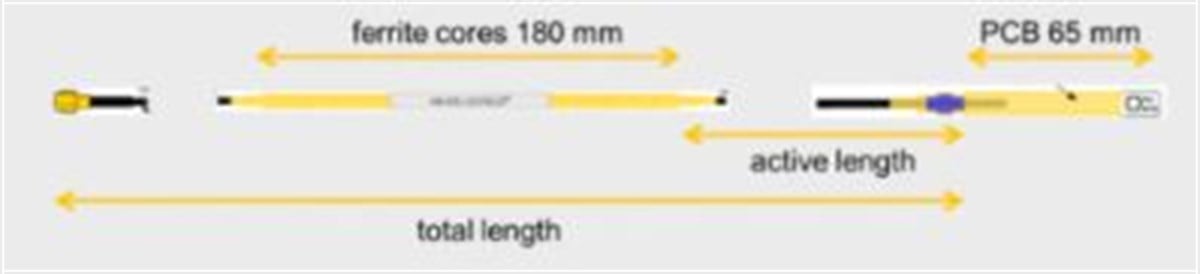

Dimensions: Total length: 3 m (9.8 ft), Active length: 2 m (6.6 ft)
Diameter: 5 mm (0.20 in)
Weight: 0.21 kg (0.47 lbs)
ENVIRONMENT:
IP Rating: IP 65
Operating Temperature: –20 °C to +65 °C (–4 °F to +149 °F)
