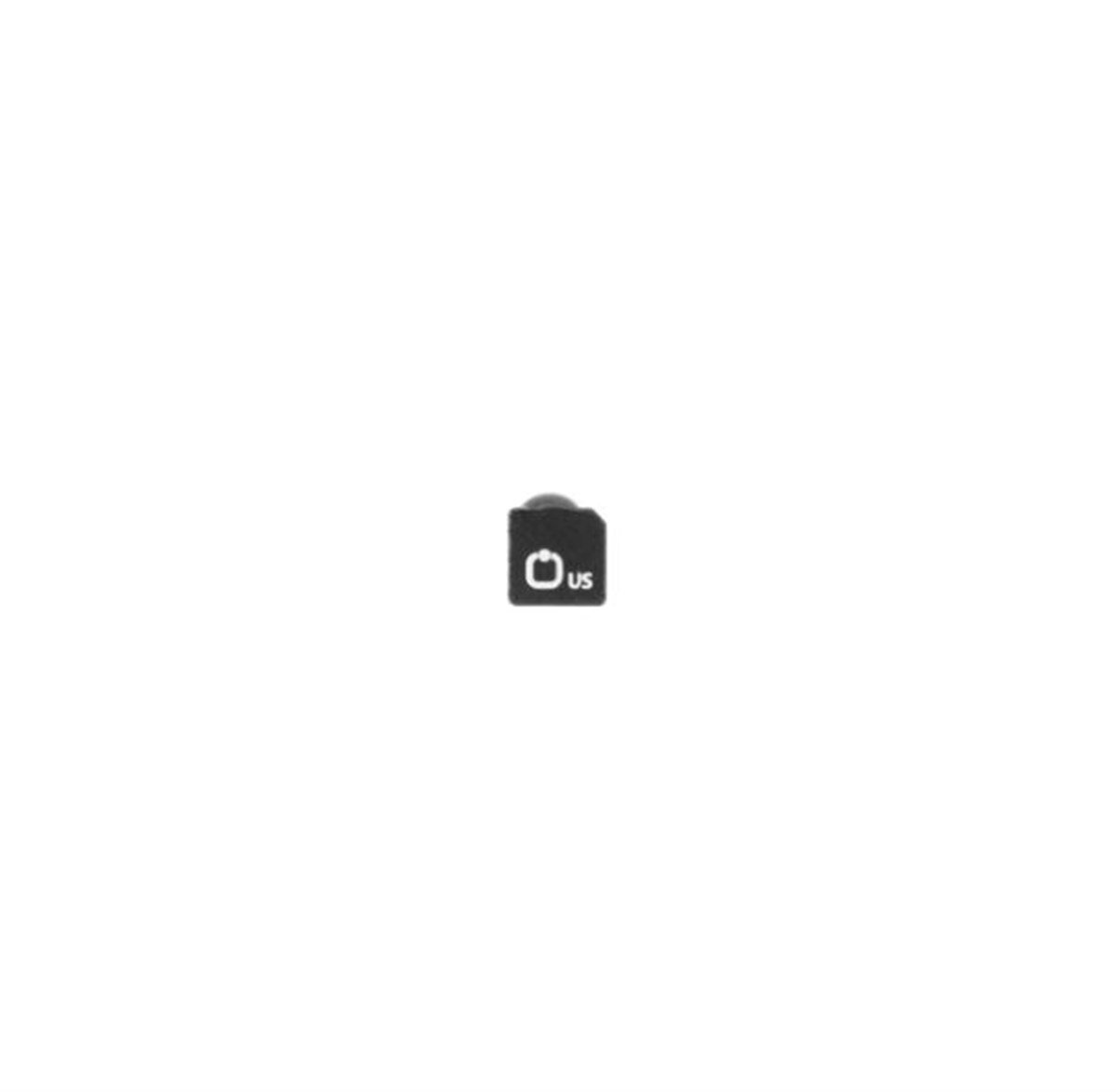

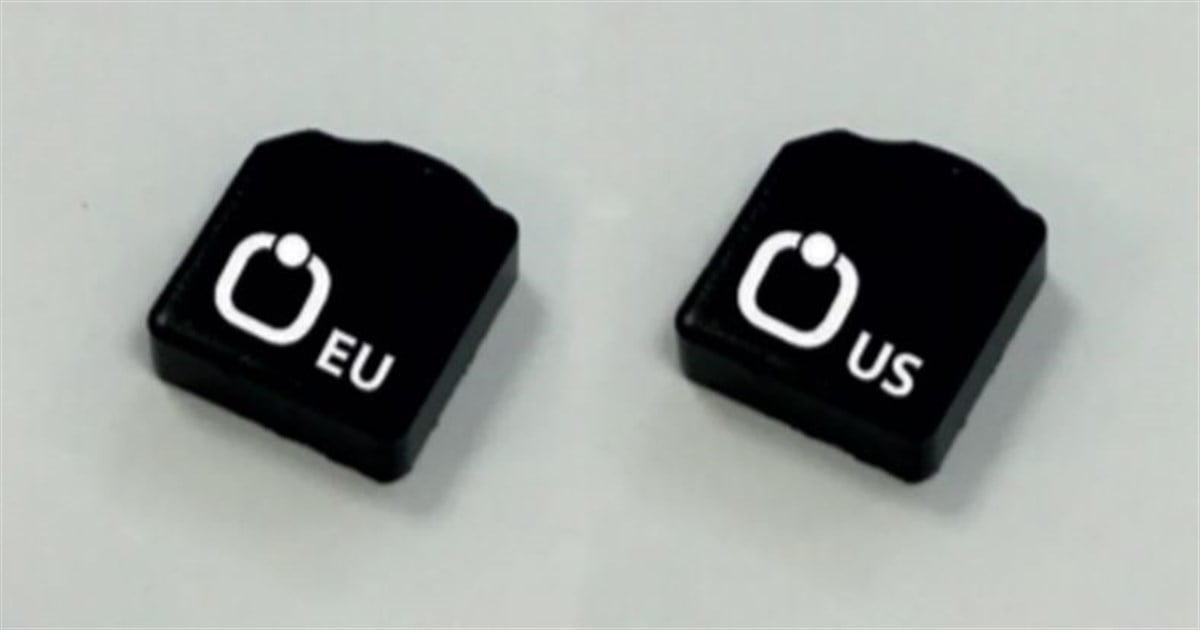

Omni-ID Fit 220 High Temperature RFID Tag
Omni-ID’s Fit 220 High Temperature Tag is the smallest regional RFID tag with the capability to survive cycling applications to +235°C. The performance of the Fit 220 tag is not sacrificed by its small size and it is an ideal solution for tracking very small metal assets where space is limited.

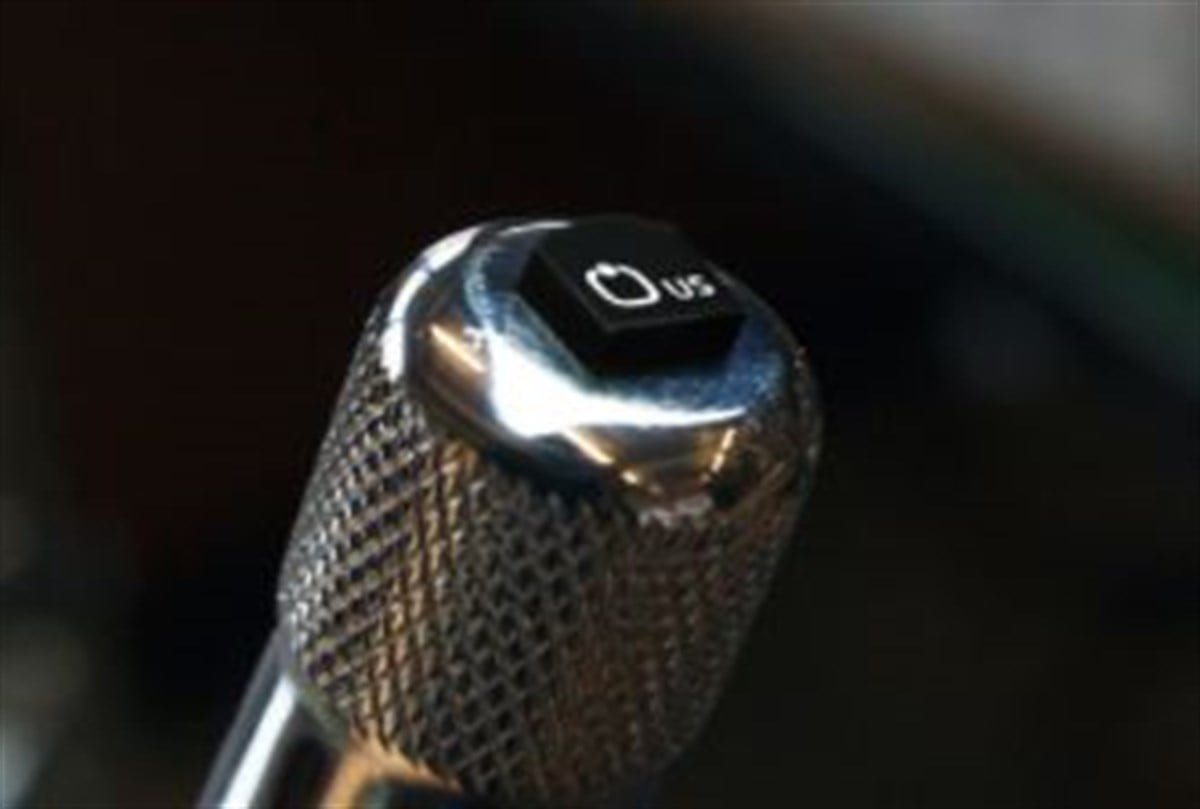

With its regional performance, high temperature capability, and very small form factor, the Omni-ID Fit 220 High Temperature Tag is ideally suited for tracking small metal assets in applications such as: small hand tools, IT assets, and healthcare instruments.
Features
* IP 68 rated.
* Small form factor.
* Optimized for metal.
* Versatile and reliable.
* High temperature UHF RFID tag.
* Proven consistent performance.
* One year manufacturer's warranty.
* Smallest tags in the market with survival temps to 225°C.
* Common applications: small hand tools, IT assets, and healthcare instruments.
Product Details
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: FCC (902-928 MHz), ETSI (866-868 MHz)
IC Type: Alien Higgs 3
Memory: EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content: Unique, auto-serialized
Max Read Distance - Fixed Reader: Up to 2.2 m (7.2 ft)
Max Read Distance - Handheld Reader: Up to 1.4 m (4.6 ft)
Applicable Surface Materials: Optimized for metal
MECHANICAL:
Tag Form Factor: Hard tag
Tag Materials: Painted black ceramic
Attachment Method: Film adhesive (included) for placement only, in applications exceeding +85°C
Dimensions - without IC Bump: 6.8 x 6.8 x 2.7 mm (0.27 x 0.27 x 0.11 in)
Dimensions - including IC Bump: 7.8 x 6.8 x 2.7 mm (0.31 x 0.27 x 0.11 in)
Weight: 0.6 g
ENVIRONMENT:
Operating Temperature: -20° to +85°C (-4° to +185°F)
Maximum Temperature Exposure: -20 to +235°C (-4° to +455°F)
