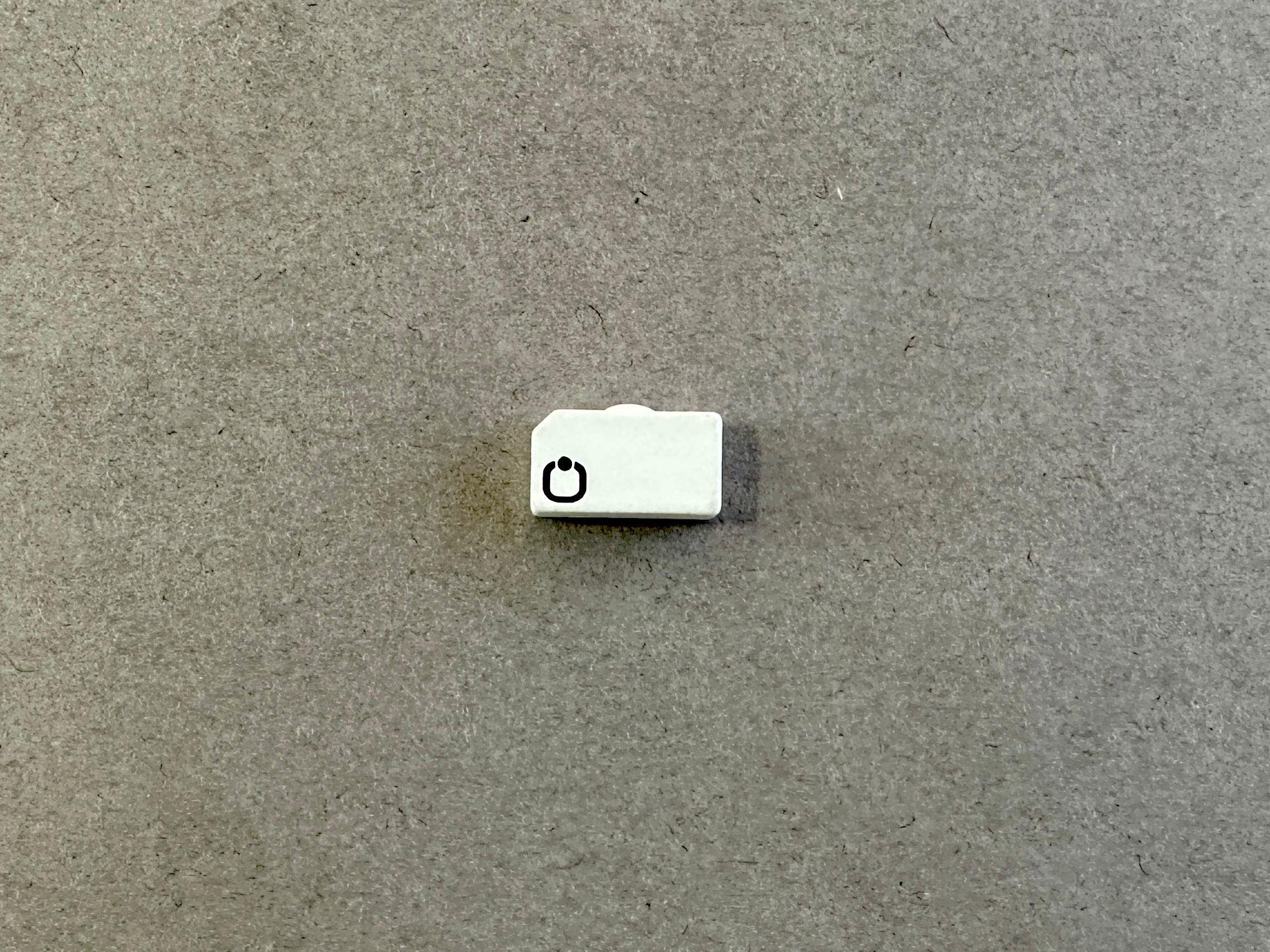

Omni-ID Fit 400 High Temperature RFID Tag
Omni-ID Fit 400 is a small form factor, high performance RFID tag optimized for metal substrates. Designed for tracking small metal assets, Fit 400’s high performance design provides handheld and portal compatibility. Fit 400 can also survive standard cleaning processes including autoclaves and is compatible with typical finishing processes, such as dipping, coating, heat shrinking and moulding for tools and other high value equipment. With its small form and high performance, Omni-ID Fit 400 tags are ideally suited to tracking small metal assets and or embedding within a metal cavity in applications such as: metal hand tools, embedding into metallic containers, heavy machinery, metal IT assets, autoclaves and high temperature sterilization, oil and gas.
The Omni-ID High Temperature Fit 400 RFID tag is a small ceramic tag ideally suited for cycling applications with high temperatures to 225°C.
Features
* IP 68 rated.
* Optimized for metal substrates.
* High temperature UHF RFID tag.
* One year manufacturer's warranty.
* Up to a 4 meter (13.1 ft) read range.
* Ideal for tracking small metal assets.
* Perfect solution when space is limited, but performance is demanded.
* Common applications: tool tracking including metal hand tools and metal IT assets.
* Compatible with typical finishing processes, such as dipping, coating, heat shrinking, and moulding for tools and other high value equipment.
Product Details
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: FCC (902-928 MHz), ETSI (866-868 MHz)
IC Type: Alien Higgs 3
Memory:EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content: Unique, randomized number
Max Read Distance - Fixed Reader: Up to 4 m (13.1 ft)
Max Read Distance - Handheld Reader: Up to 2 m (6.6 ft)
Applicable Surface Materials: On metal only
MECHANICAL:
Tag Form Factor: Hard Tag
Tag Materials: Black durable paint
Attachment Method: High temperature epoxy
Dimensions: 13.1 x 7.1 x 3.1 mm (0.52 x 0.28 x 0.12 in)
Weight: 1.6 g
ENVIRONMENT:
Operating Temperature: -20° to +85°C (-4° to +185°F)
Maximum Temperature Exposure: -20 to +225°C (-4 to +437°F)
