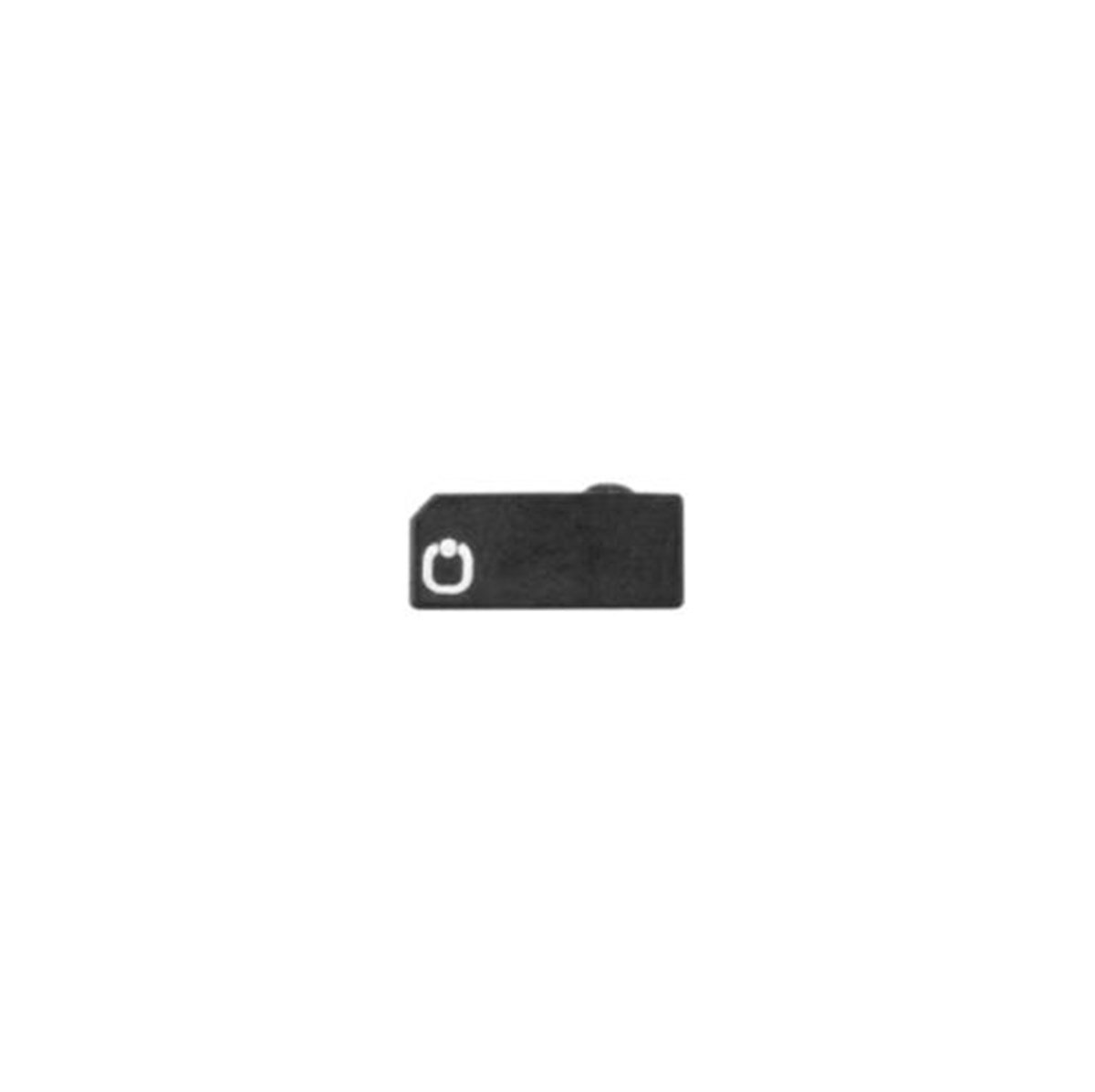

Omni-ID Fit 400P RFID Tag
Omni-ID Fit 400P is a small form factor, high performance RFID tag optimized for attachment to plastic assets and embedding into plastic materials. Fit 400P features a high sensitivity RF design and broad read angle enabling handheld and portal reading. Compatible with finishing processes including heat shrink, potting and injection moulding, Fit 400P is an excellent covert tag solution.
The Omni-ID Fit 400P is designed as a high performance RFID tag that is optimized for small form factor and attachment to plastic assets.
* Optimized for attachment to plastic assets and embedding into plastic materials.
* High sensitivity RF design.
* Compatible with finishing processes including heat shrink, potting, and injection moulding.
* Ideal for asset tracking applications.
Product Details
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: FCC (902-928 MHz), ETSI (866-868 MHz)
IC Type: Alien Higgs 3
Memory:EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content: Unique, randomized number
Max Read Distance: Up to 3.5 m (11.5 ft)
Applicable Surface Materials: Optimized for plastic and non-metallic substrates
MECHANICAL:
Tag Form Factor: Hard tag
Tag Materials: Durable paint
Attachment Method: Film adhesive
Dimensions: 17.6 x 7.1 x 4.1 mm (0.70 x 0.28 x 0.16 in)
Weight: 2.6 g
ENVIRONMENT:
Operating Temperature: -20° to +85°C (-4° to +185°F)
