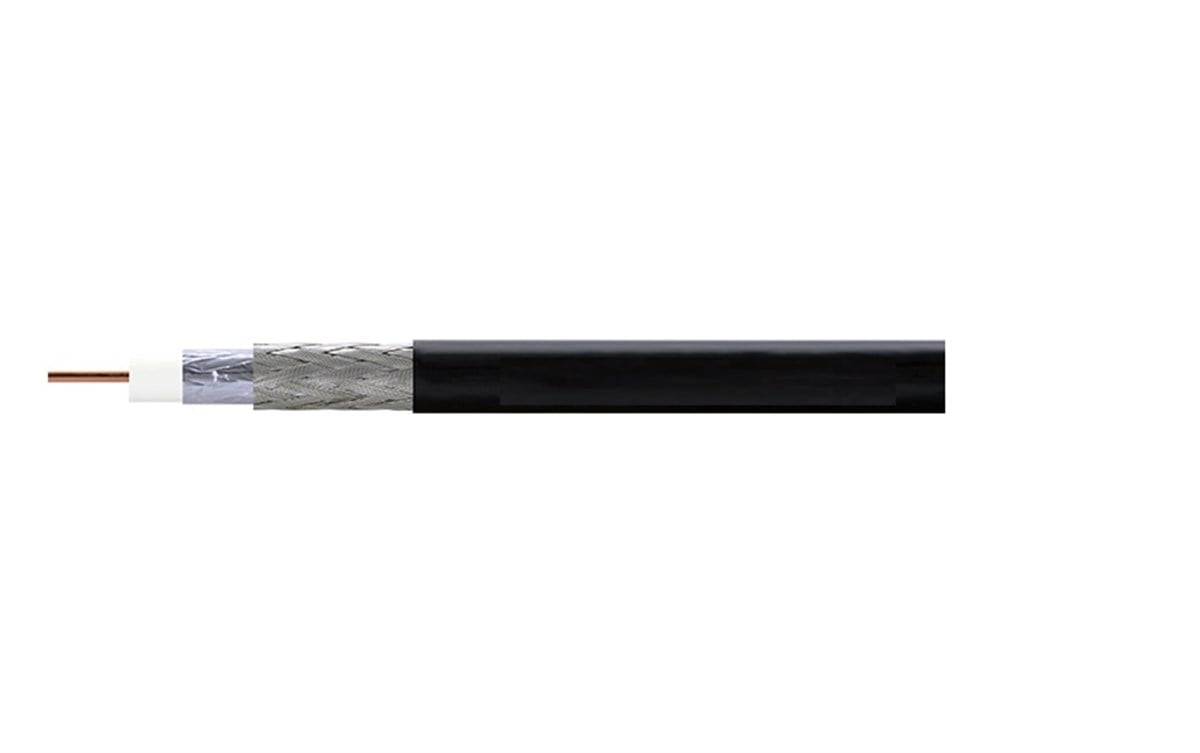

R56 RFID Anten Kablosu (R56-U)

PHYSICAL PROPERTY

Inner Conductor

Solid Bare Copper

0.0559 in

1.42 mm

Dielectric

Foamed Polyethylene

0.150 in

3.81 mm

1st Outer Conductor

Sealed APA Tape

0.157 in

3.99 mm

2nd Outer Conductor

36AWG, 95% Tinnes Copper Braid

0.182 in

4.62 mm

Jacket

Black PE

0.240 in

6.10 mm

ELECTRICAL PROPERTY

Operation Frequency

30 ~ 6000 MHz

Characteristic Impedance

50Ω

Velocity of Propagation, Nom.

83 %

Capacitance, Nom.

24.1 nF/kft

79.1 nF/km

Inner Conductor Resistance @20°C

3.32 Ω/kft

11 Ω/km

Outer Conductor Resistance @20°C

3.89 Ω/kft

13 Ω/km

MECHANİCAL SPECIFICATIONS

Product Weight

34.3 lb/kft

51 kg/km

Minimum Bend Radius

0.75 in

19.1 mm
