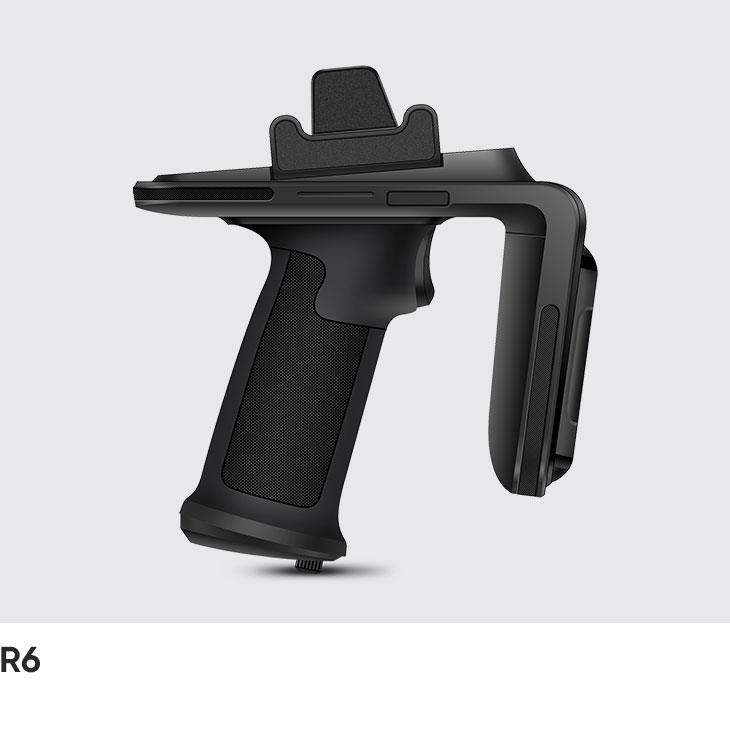

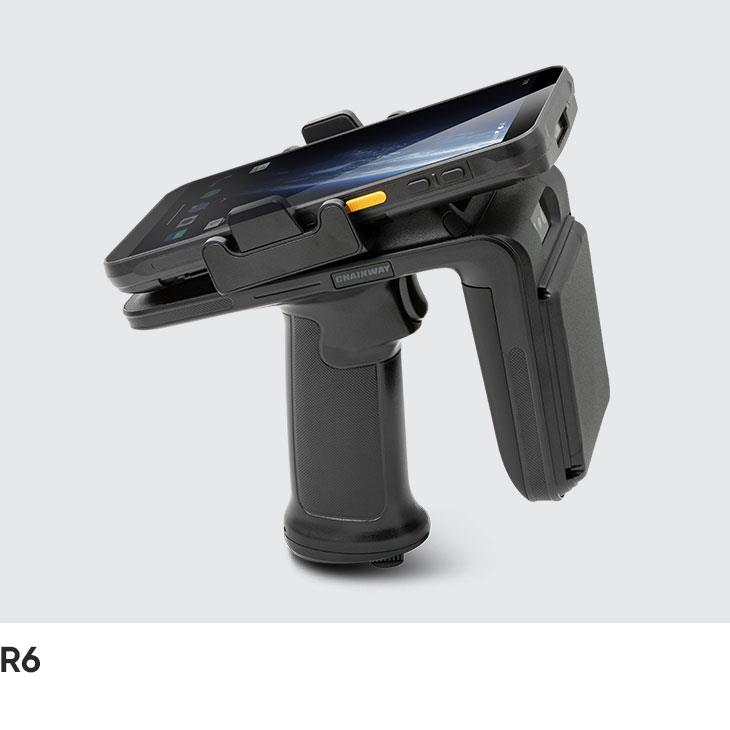

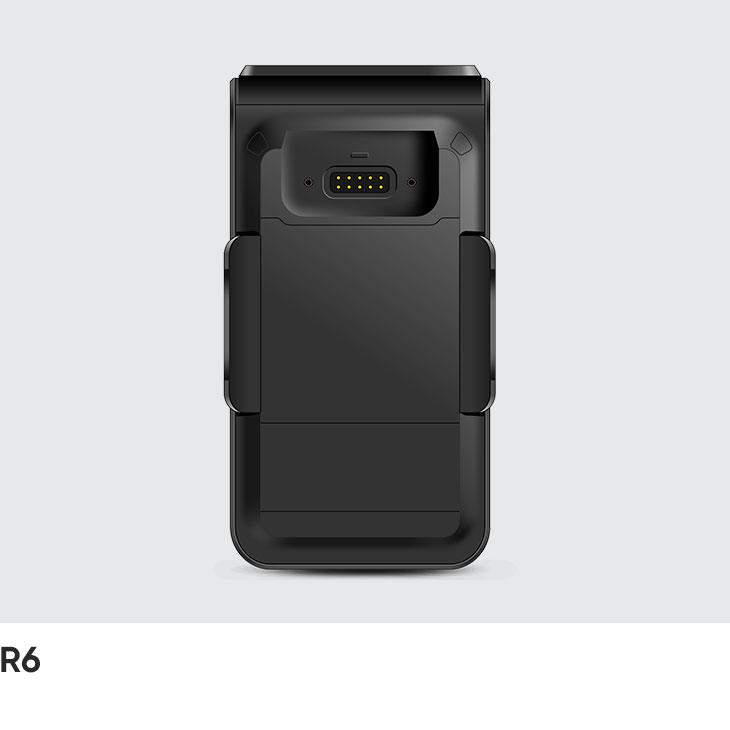

R6 UHF RFID Sled Reader
SPECIFICATIONS:
Physical Characteristics
Dimensions: 151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in.
Weight: Sled Reader: 438 g / 15.45 oz.
Power: Battery specification:5200 mAh removable battery, Standby: over 70 hours (keeping bluetooth connected), Continuous use: up to 2.5 hours (UHF reading: 400 tags), Charging time:4-5 hours (with standard adaptor and USB cable)
Buzzer: Support
Interfaces: USB 3.0 Type-C

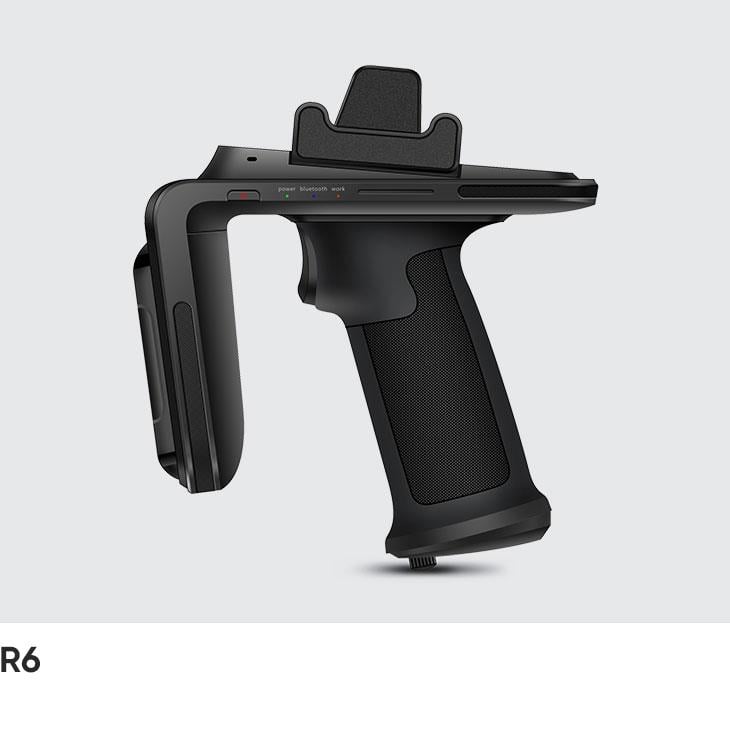

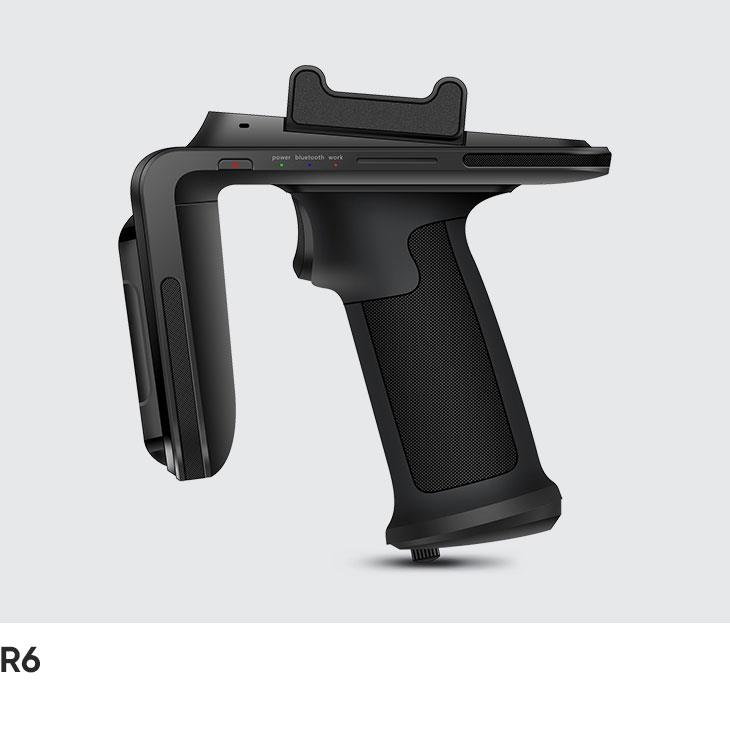

Indicator LED: Power, Work, Bluetooth

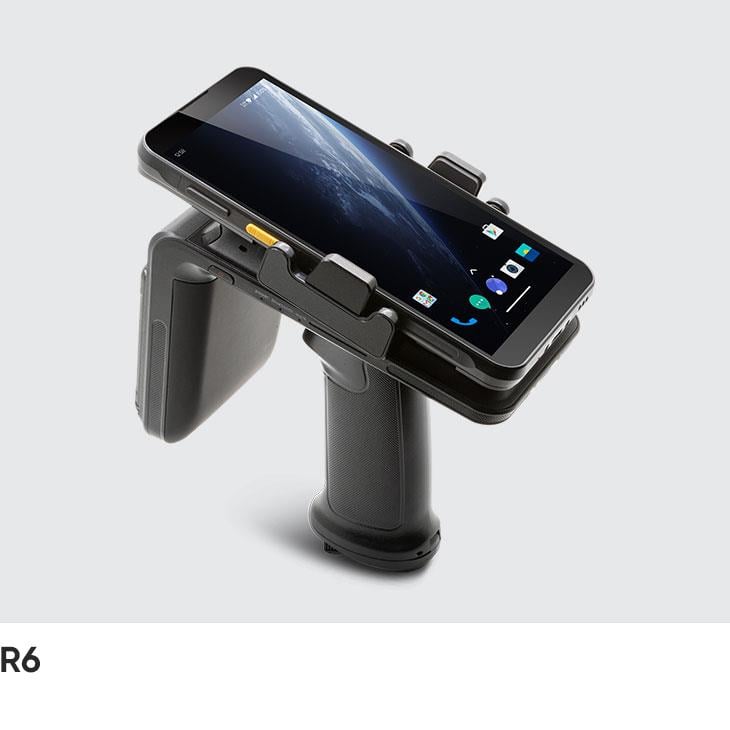

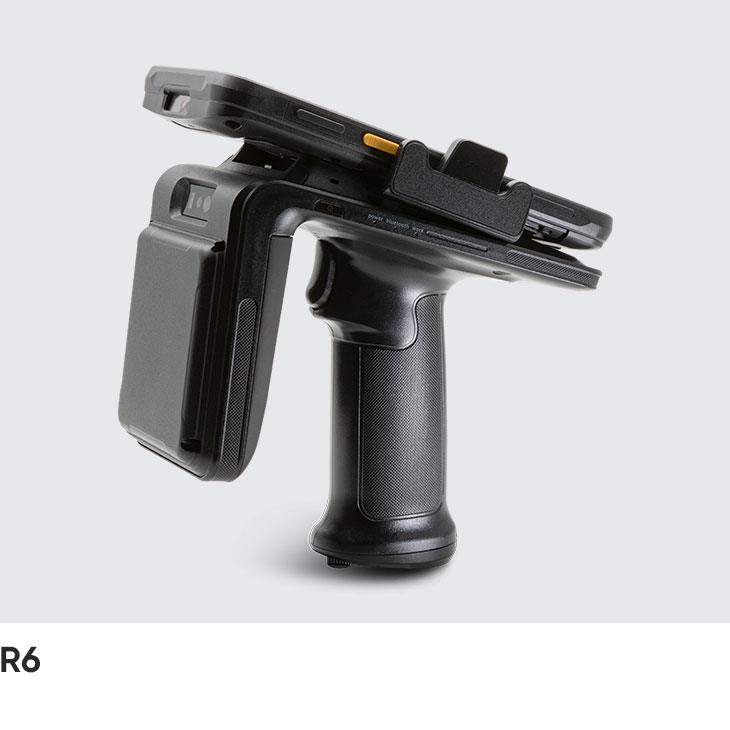

Size of adapted phone: Sled Reader: Width 68~80 mm, thickness ≤ 22 mm, Others: Based on phone case or holder
Product Material: Plastic
Colour: Black
Developing Environment
SDK: Android / iOS
Language: Java / Objective-C
Tool: Android Studio / Xcode
User Environment
Operating Temp.: -4℉~+122℉ / -20℃~+50℃
Storage Temp.: -40℉~+158℉ / -40℃~+70℃
Humidity: 5%RH - 95%RH non condensing
Drop Specification: Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing: IP54 per IEC sealing specifications
ESD: ±15 KV air discharge, ±8 KV conductive discharge
UHF RFID
Engine: CM710-1 module based on Impinj E710, CM2000-1 module based on Impinj Indy R2000
Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
Protocol: EPC C1 GEN2 / ISO18000-6C
Antenna: Circular Polarized Antenna (4dBi)
Power: 1W (30dBm, support +5~+30dBm adjustable), 2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate. 1300+ tags/sec
Max Read Range:
Impinj E710 chip: 30m (Impinj MR6 tag, size 70 x 15mm), 28m (Impinj M750 tag, size 70 x 15mm), 31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Impinj R2000 chip: 25m (Impinj MR6 tag, size 70 x 15mm), 26m (Impinj M750 tag, size 70 x 15mm), 25m (Alian H3 Anti-Metal tag, size 130 x 42mm)
Note: * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Communication
Bluetooth: Bluetooth Low Energy (BLE) 5.0
Performance
MCU: Cortex-M3 72MHz
Barcode Scanning
2D Imager Scanner: SE2707
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: *This function is optional
