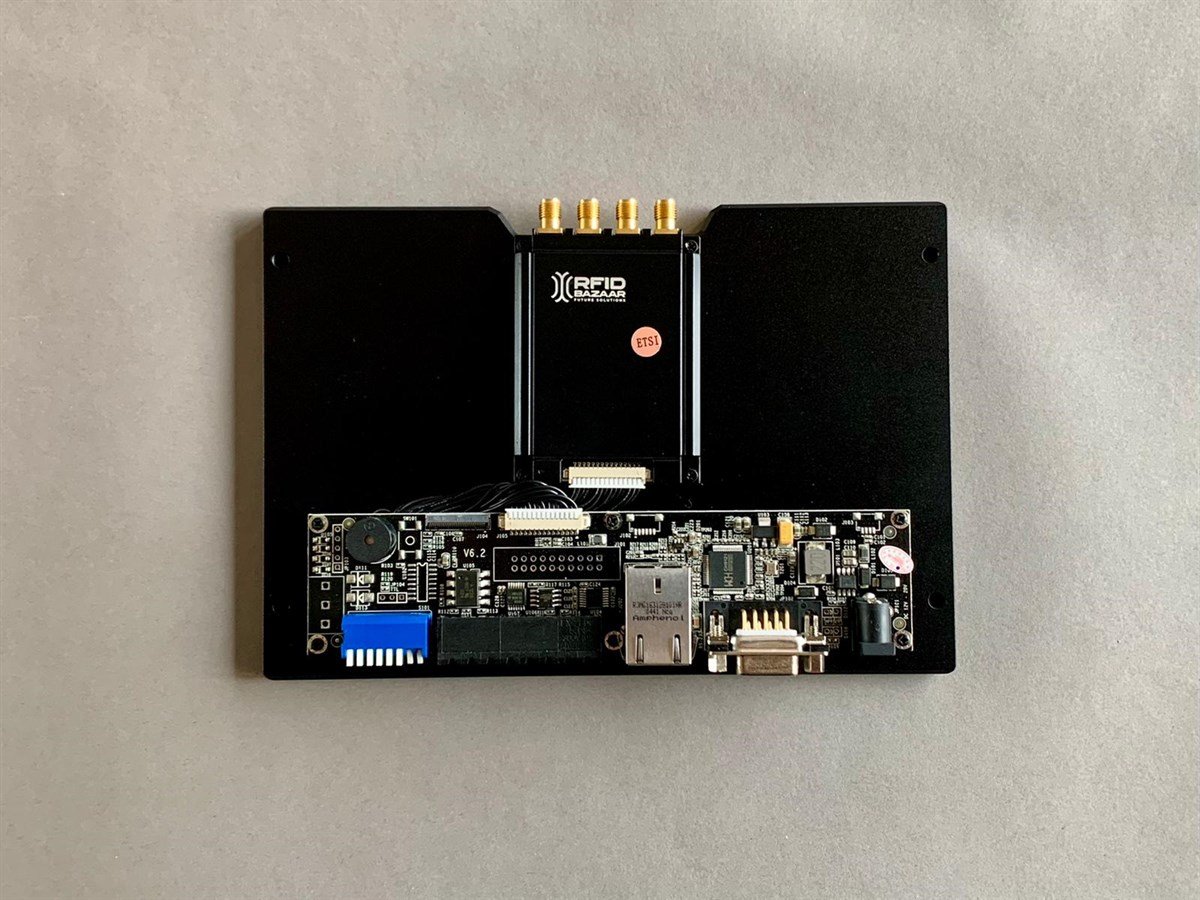

R600 UHF Sabit RFID Okuyucu / 4 Port (R600-4)

R600 UHF Sabit RFID Okuyucu / 4 Port

Product;

Data Terminal
Fixed Reader
Clothing
Library
Livestock
Retail


Mechanical Parameters

Dimensions: 76.7*51*6.3mm (module size)

Electrical Parameters

Input Voltage: DC 4.6V~5.5V
Operating Current: 1.2A+/-10%@5V (33dBm Output，25°C)
Standby Mode Current: ＜80mA（EN high level）
Sleep Mode Current: <100uA（ENlow level）
Baud Rate: 115200 bps(Default and recommended)，38400 bps
Ambient Temp Monitoring: Supported

Communication Interface

Serial Port: Uart 3.3V
GPIO: 2 Input, 2 Outputs (3.3V）
Ethernet / TCP-IP

Application Environment

Operating Temp: -20℃~+55℃
Storage Temp: -40℃~+85℃
Humidity: 5%RH~95%RH（non-condensing）
Heat Dissipation: External radiator

UHF

Engine: Impinj Indy R2000
Protocol: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C
Frequency: 865~868MHz / Optional 902~928MHz
Output Power: 0~33dbm
Peak Inventory Speed: ＞700pcs/s
Tag Buffer Mode: 500 pcs @ 96 bit EPC
Output Power Precision: +/- 1dB
Output Power Flatness: +/- 0.2dB
Sensitivity: ＜-85dBm
Tag RSSI: Support
Antenna Detector: Supported

Supported Regions:

China, Korea, Malaysia, Japan
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208


Data Sheet - R600 UHF Fixed RFID Reader / 4 Port
