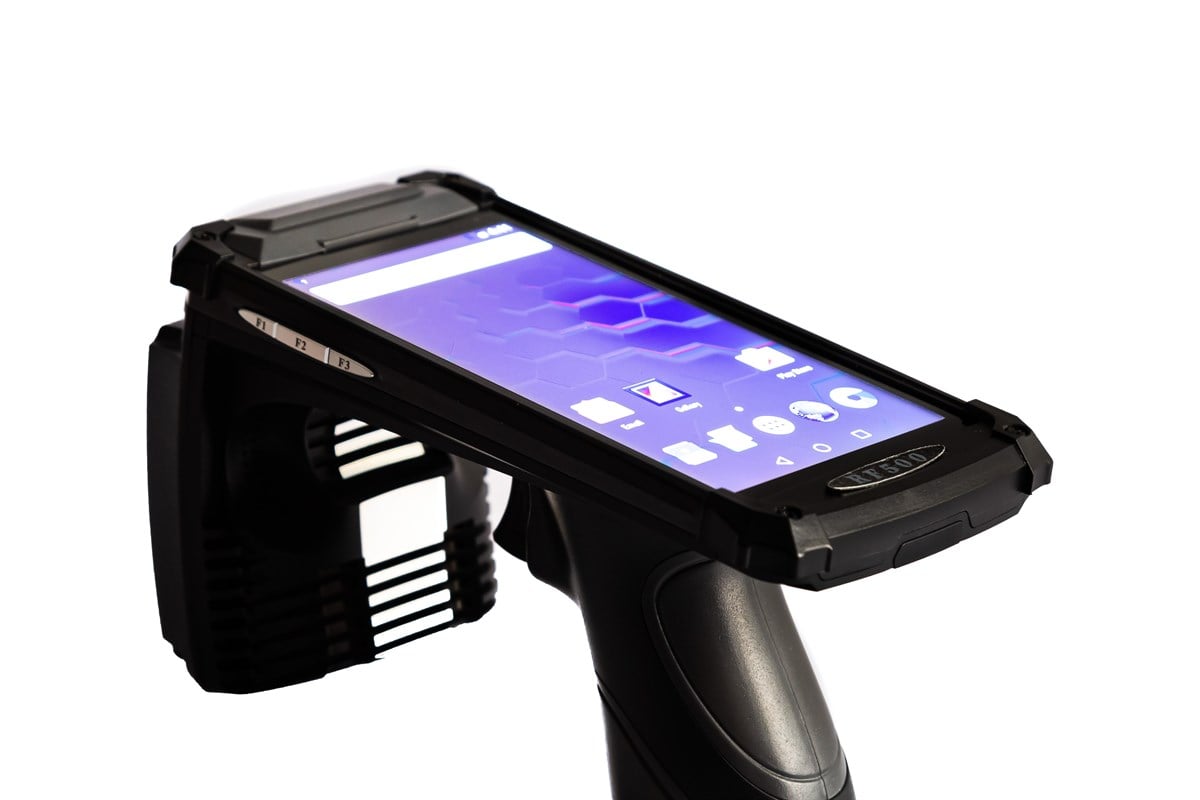

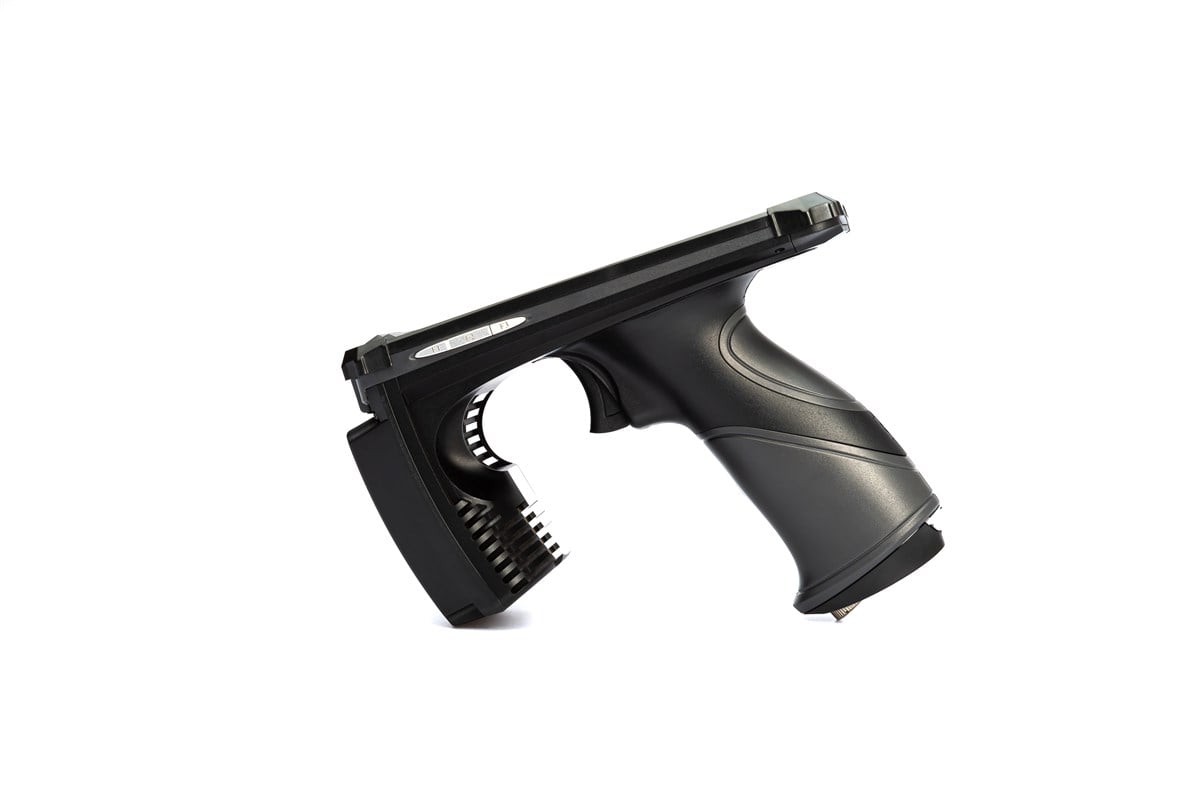

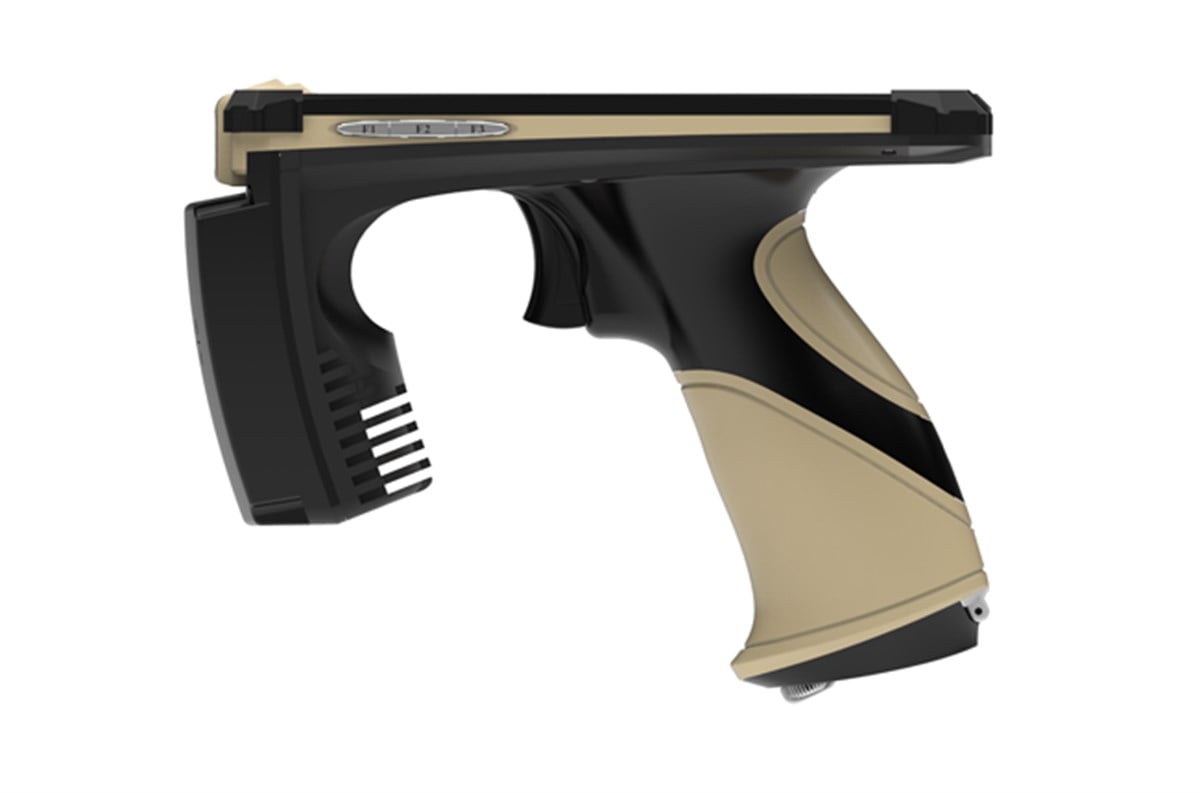

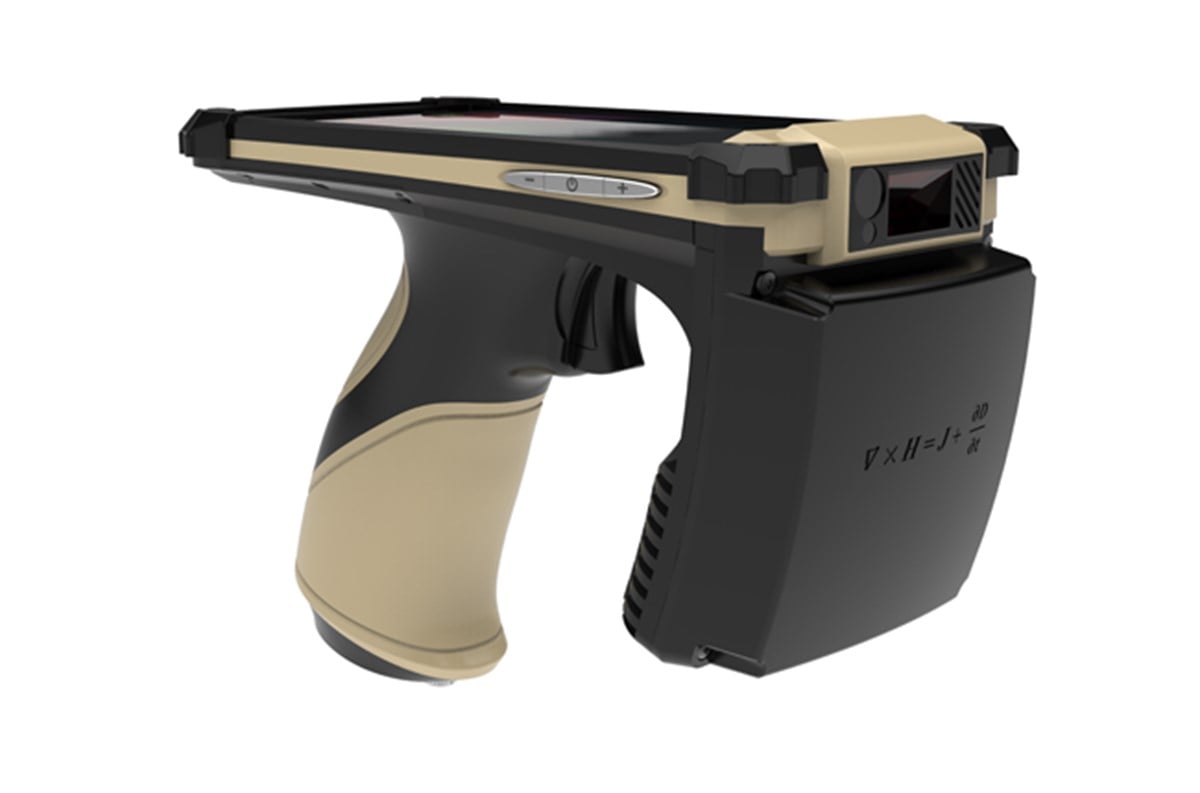

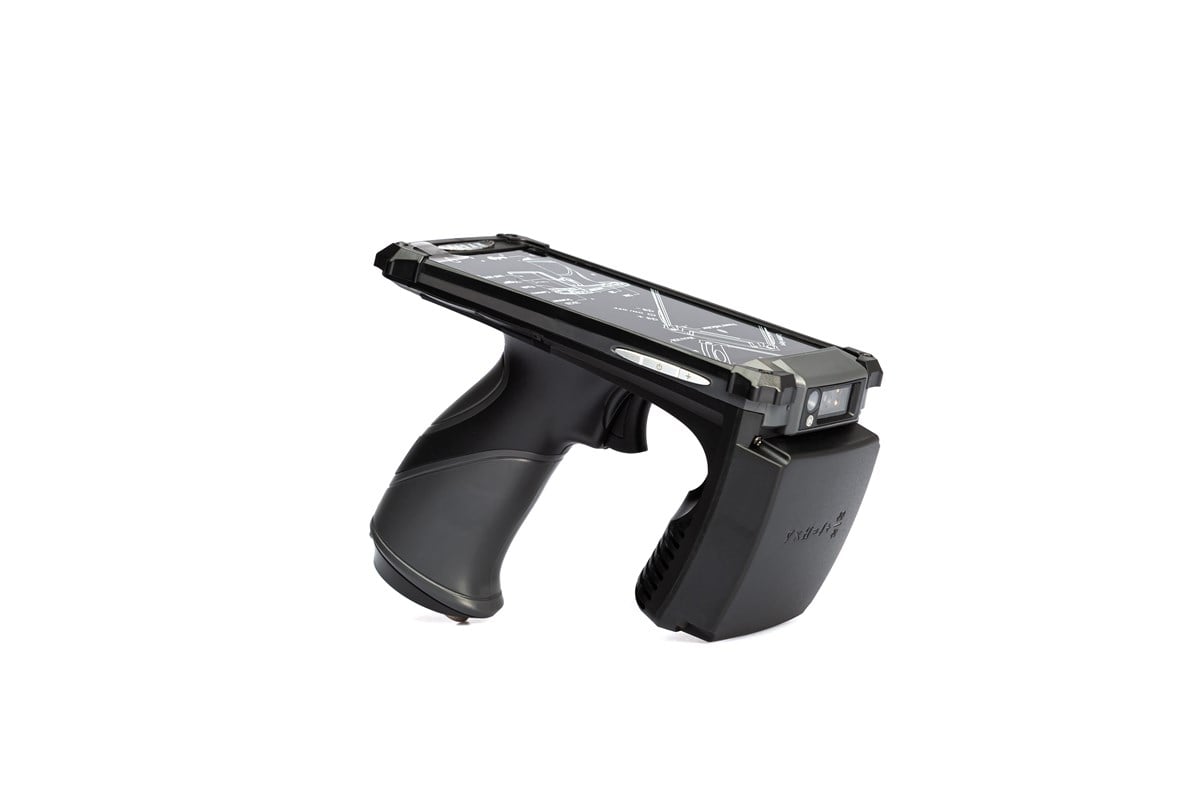

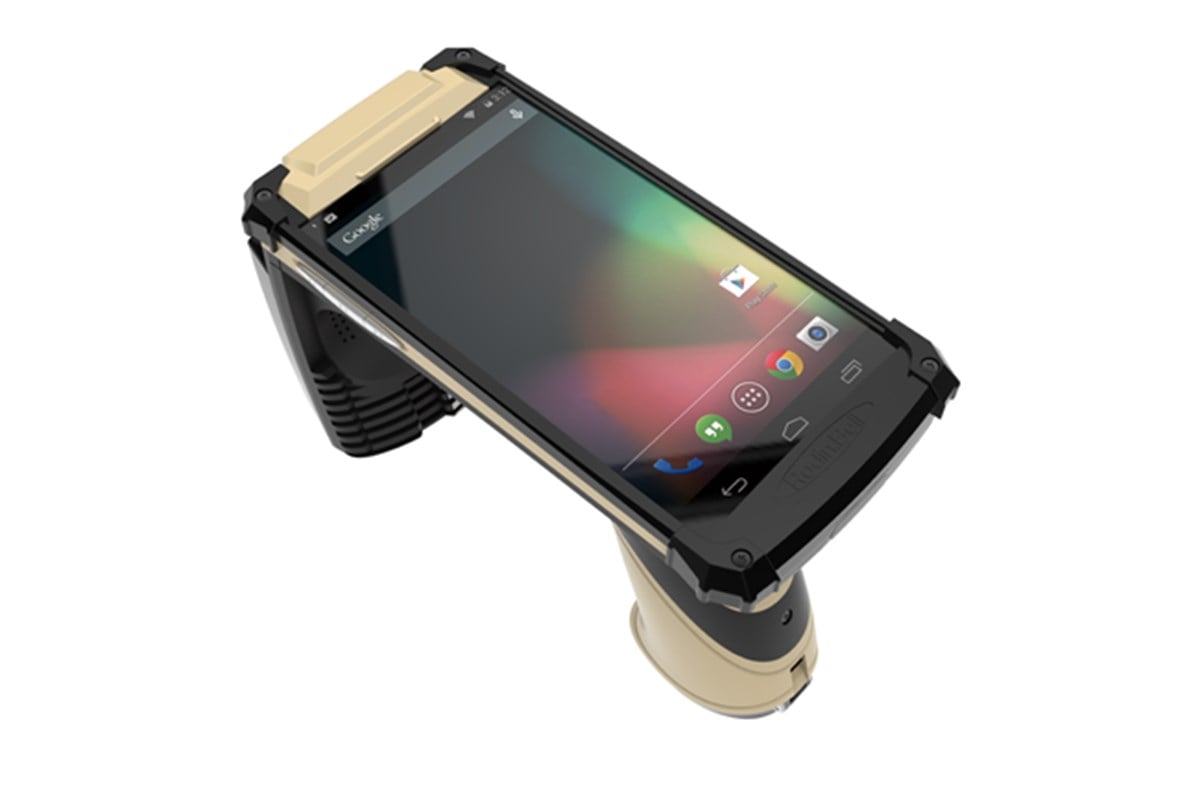

RF500 UHF Mobil RFID El Terminali / Android
Product;
Inventory
Power patrol
Personnel
Livestock
Accessories
Clothing retail
Mechanical Parameters
Materials: Aviation Aluminum, PC+ABS
Dimensions: 167*82*129mm / Grip 111*38*47mm
Weight: 580g(battery included/standard version)
System Characteristics
Operating System: Android 14.0
CPU: Octa-core 64-bit Cortex-A55 /up to 2.0 GHz + a 200M RISC-V Co-processor
GPU: G57 MC1 / High performance 3D engine
RAM+ROM: 4G+32G, Optional 4G+64G
LCD: 5.0 inches/ 1280*720/IPS/180° view angle
Touch Screen: 1.1mm thickness tempered glass/10- dot touch/operable with gloves
Hotswapping Battery: Pistol style hotswapping battery system
Buttons: Power / Volume:3 ALPS buttons / Operating force 2.5N / Operating life 1 million cycles
Scan Trigger: OMRON button / Operating force 1.27N / Operating life 10 million cycles
Power: 6000mAh chargeable Ii-polymer battery
Card Slots: Micro SIM card slot*1 / TF card slot*1
USB Interface: Micro USB/MOLEX connector /Operating life 10,000 cycles
Audio: Supported
Vibration: 10mm /Button style
Charge Indicator: Bicolor LED
Wireless Communications
WIFI: 2.4G/5G Dual-Band
Bluetooth : Bluetooth 5.0
5G: Supported Optional
Application Environment
Operating Temp: -20℃~+60℃
Storage Temp: -30℃~+70℃
Humidity: 5%RH~95%RH（non-condensing）
Protection Grade: IP64
Safety Drop Height: 1.6 m / 5.25ft
Barcode
Engine: Datamatrix/QRCode/PDF417USPlanet/UK Postal,etc
1D Barcode: UPC/EA Symbol SE955N/Code128/Code39/Code93/Code11/Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/MSI/RSS etc.
2D Barcode: Data Matrix/QR Code/Aztec Code/PDF417/US Planet/UK Postal etc.
UHF RFID
Engine: Impinj Indy R2000
Protocol: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C
Frequency: 865~868MHz / Optional 902~928MHz
Output Power: 0~33dbm
Peak Inventory Speed: ＞500pcs/s
UHF Antenna: 4dBi air dielectric antenna
Read Distance: ＞10m
Supported Regions:
China, Korea, Malaysia, Japan
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
Graphic Collections
Camera: 13 megapixels/ automatic focus/ flashlight
Accessories
Battery,Charger，USB data cable，Hanging Lace
Desktop charger(charge two batteries) Optional
Data Sheet - RF500 UHF Mobil RFID El Terminali
