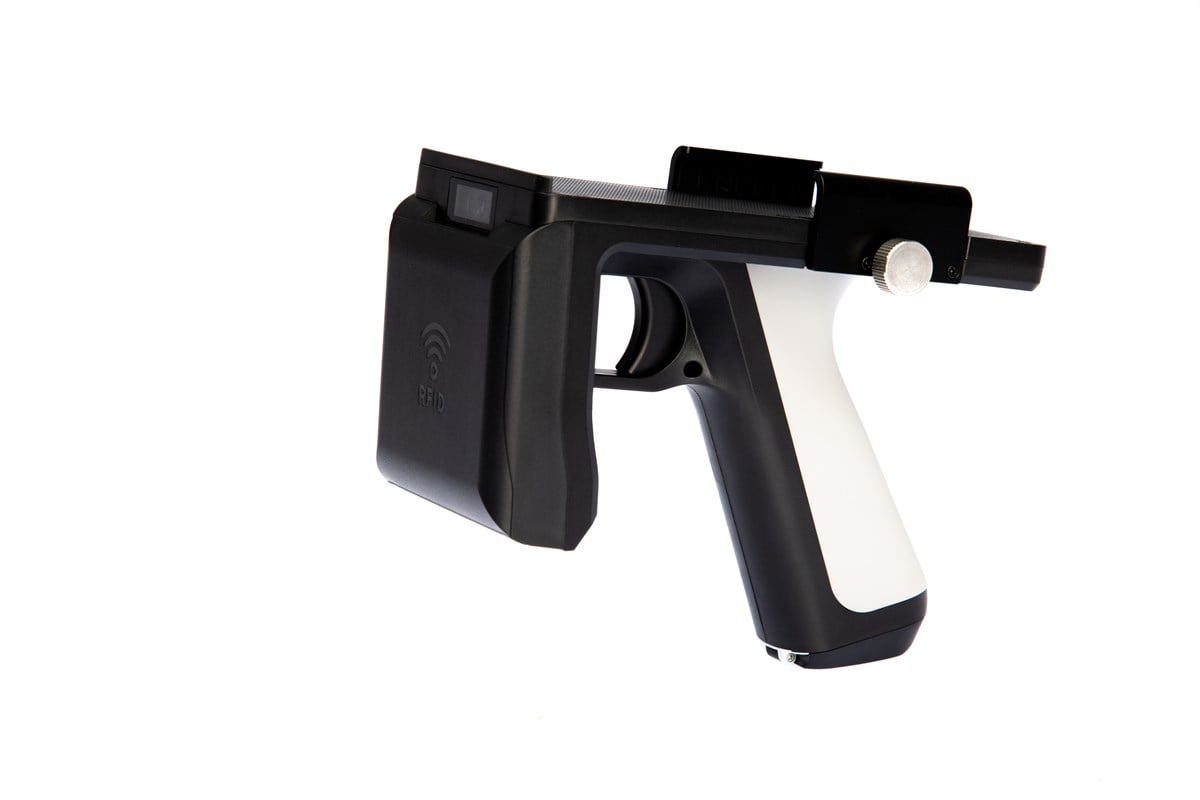

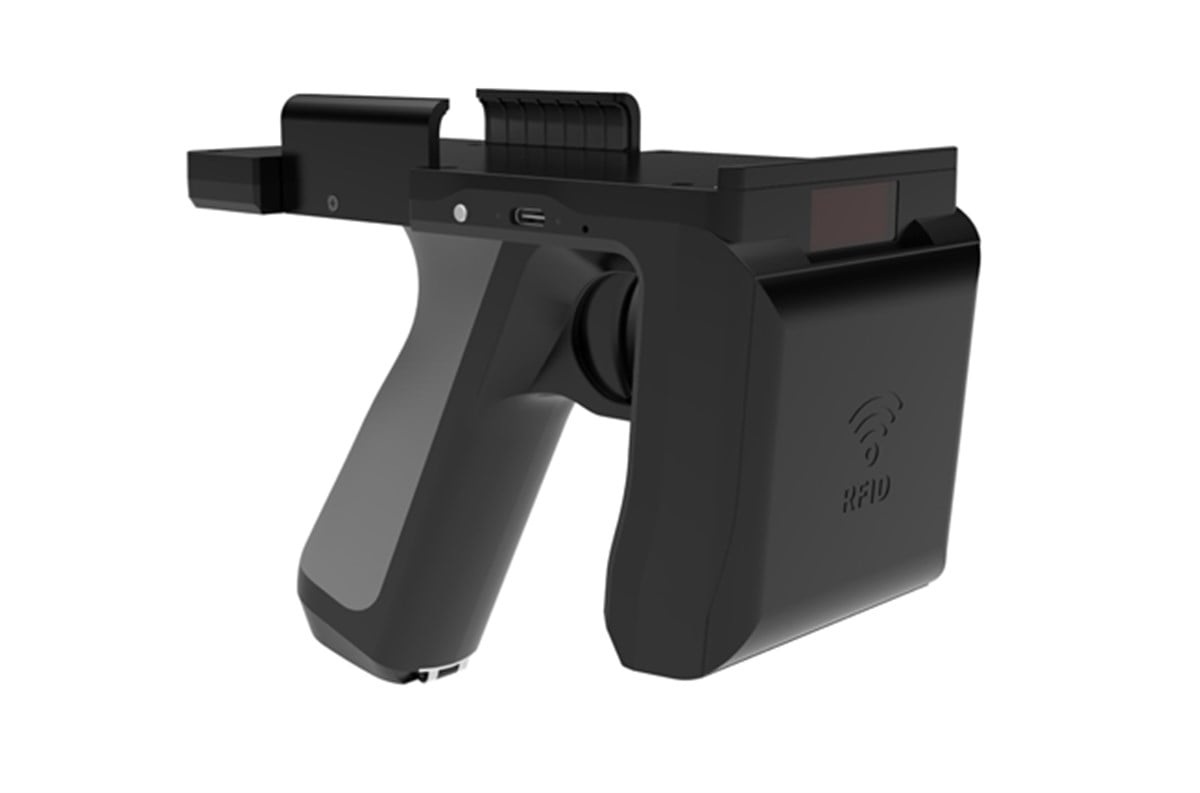

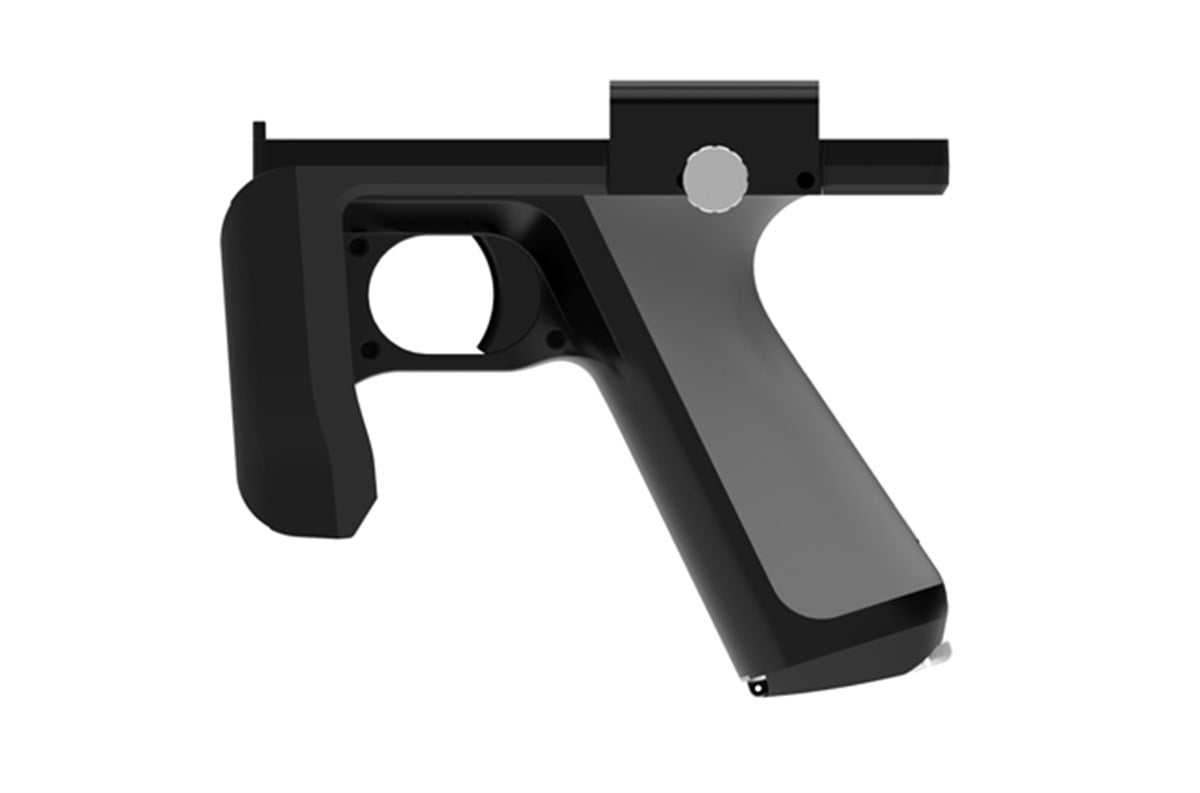

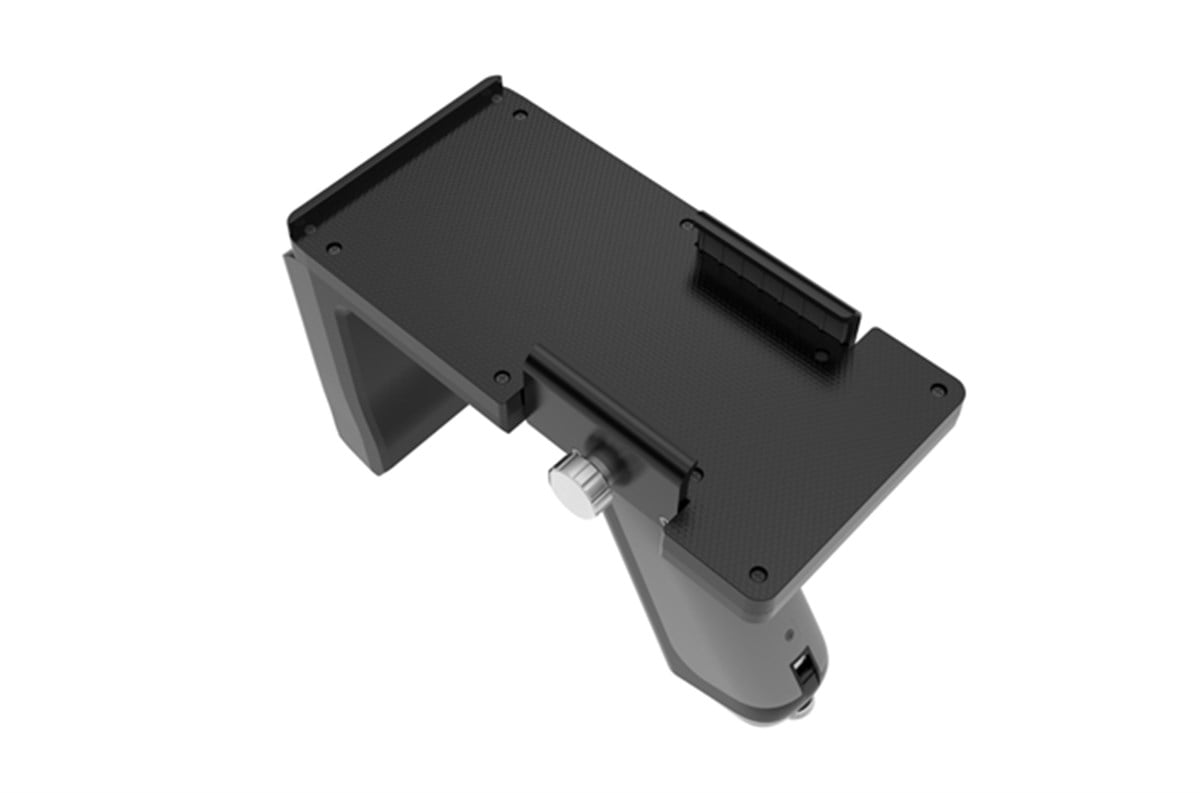

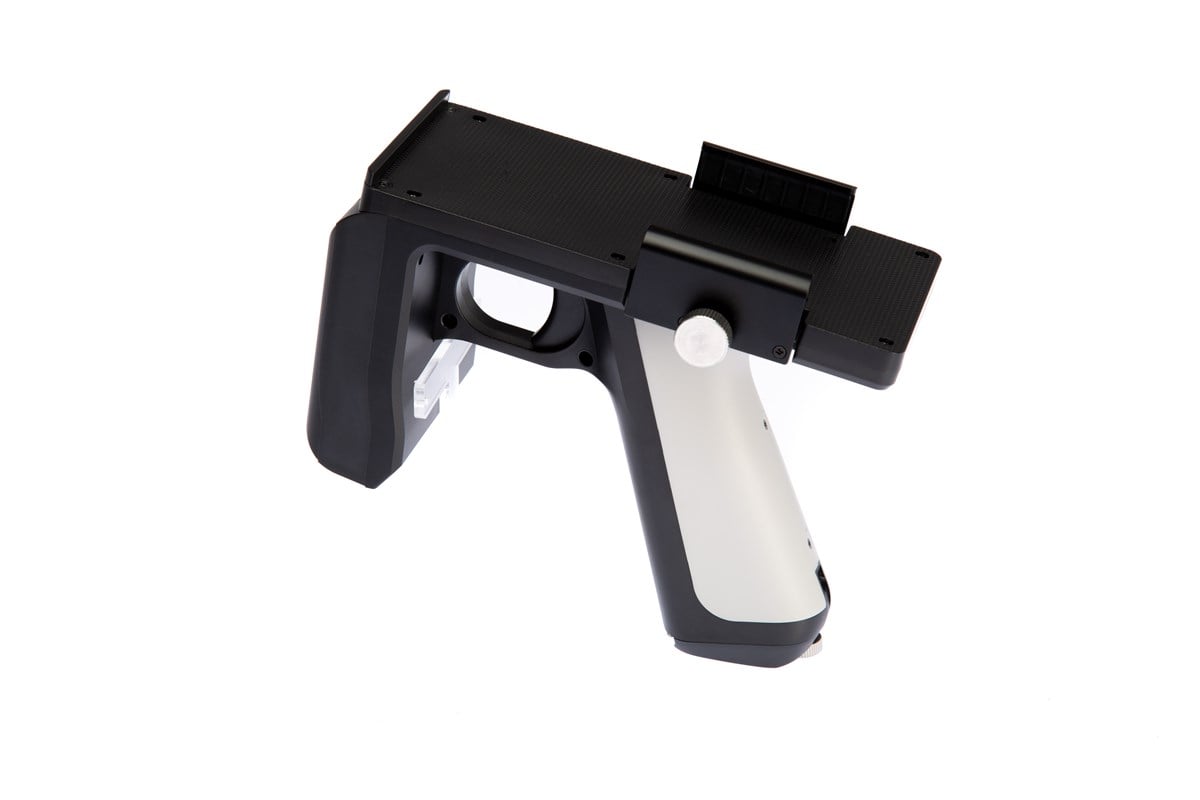

RF99 UHF Mobil RFID Okuyucu

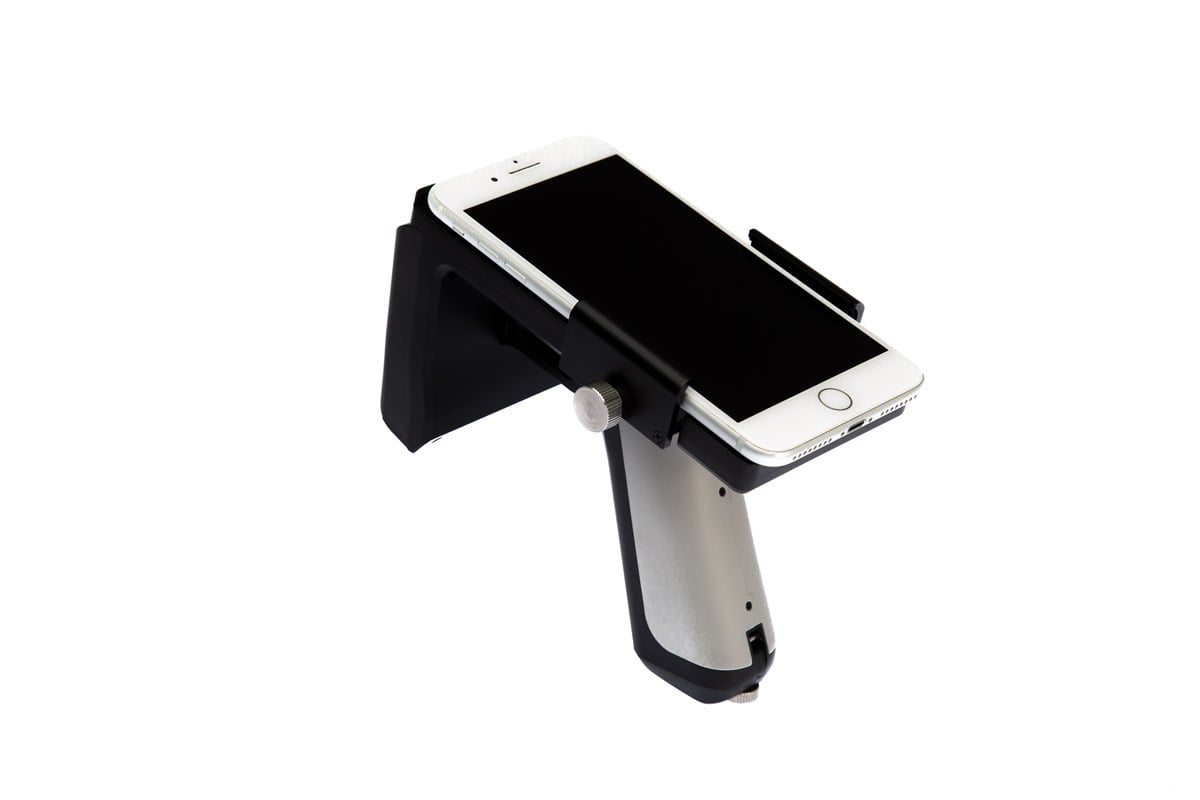

Wonderful design for fixing your phone.
Product;
Inventory
Power patrol
Personnel
Livestock
Accessories
Clothing retail
Mechanical Parameters
Materials: Aviation Aluminum, PC+ABS
Dimensions: 162*138*78mm
Weight: 520g(battery included/standard version)
System Characteristics
Hotswapping Battery: Pistol style hotswapping battery system
Buttons Power:
ALPS buttons/ Operating force 2.5N
Operating life 1 million cycles
Scan Trigger:OMRON button/Operating force 1.27N/
Operating life 10 million cycles
Power: 6000mAh chargeable Ii-polymer battery
USB Interface: USB2.0(Type-C)*1
Buzzer: Supported
Charge Indicator: Bicolor LED （BT/Power)
Wireless Communications
Bluetooth : Bluetooth 4.2
Application Environment
Operating Temp: -20℃~+60℃
Storage Temp: -30℃~+70℃
Humidity: 5%RH~95%RH（non-condensing）
Protection Grade: IP64
Safety Drop Height: 1.2m / 5.25ft
Barcode
Engine: NLS EM3396
1D Barcode: UPC/EA Symbol SE955N/Code128/Code39/Code93/Code11/Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/MSI/RSS.etc.
2D Barcode: Data Matrix/QR Code/Aztec Code/PDF417/US Planet/UK Postal etc.
UHF RFID
Engine: Impinj Indy R2000
Protocol: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C
Frequency: 865~868MHz / Optional 902~928MHz
Output Power: 0~33dbm
Peak Inventory Speed: ＞500pcs/s
UHF Antenna: 4dBi air dielectric antenna
Read Distance: ＞12m
Supported Regions:
China, Korea, Malaysia, Japan
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
Accessories
Battery,Charger，USB data cable，Hanging Lace
Desktop charger(charge two batteries) Optional
Data Sheet - RF99 UHF RFID Sled Reader
