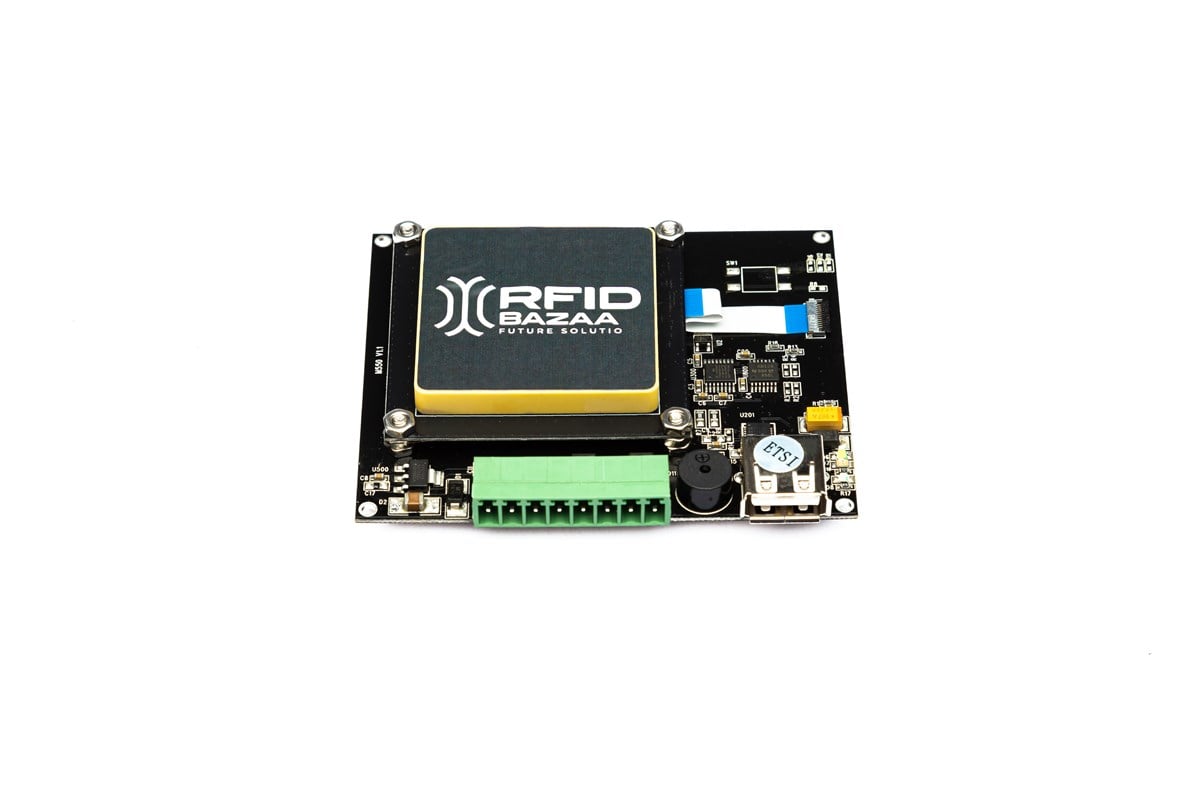

RX3 Entegre RFID Okuyucu Modül / USB
Ultra low power consumption, compact and mini-sized.
Product;
Data Terminal
Fixed Reader
Clothing
Library
Livestock
Retail
Mechanical Parameters
Dimensions: 50*50*7.9mm
Electrical Parameters
Input Voltage: DC 3.5V~5V
Operating Current: 150mA @ 5V (26 dBm Output，25°C), 110mA @ 5V (18 dBm Output，25°C)
Standby Mode Current: ＜80mA
Baud Rate: 115200 bps( default and recommended)，38400 bps
Communication Interface
Serial Port: Uart 3.3V
GPIO: 1 Input, 2 Outputs
Application Environment
Operating Temp: -20℃~+70℃
Storage Temp: -20℃~+85℃
Humidity: 5%RH~95%RH（non-condensing）
Protection Grade: IP53
Heat Dissipation: Air cooling
UHF
Protocol: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C
Frequency: 865~868MHz / Optional 902~928MHz
Output Power: 18~26dbm
Peak Inventory Speed: ＞50pcs/s
UHF Antenna: 2dbi ceramic antenna
Read Distance: 80~300cm
Tag Buffer Mode: 200 pcs @ 96 bit EPC
Output Power Precision: +/- 1dB
Output Power Flatness: +/- 0.2dB
Sensitivity: ＜-70dBm
Tag RSSI: Support
Supported Regions:
China, Korea, Malaysia, Japan
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
Data Sheet - RX3 UHF RFID-ANT Integrated Module
