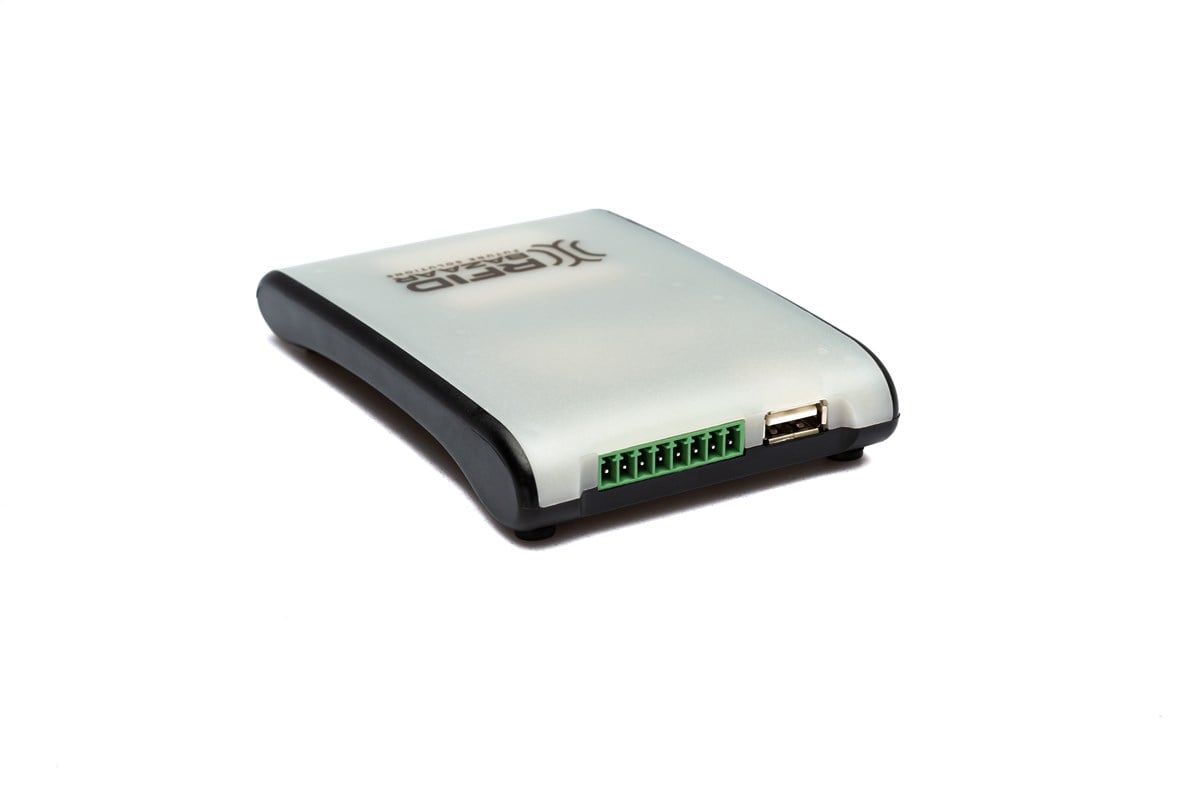

SB19 Masaüstü UHF RFID Okuyucu / USB (551)

SB19 Masaüstü UHF RFID Okuyucu / USB

Low power consumption, small-sized and easy to use.

Product;

Data Terminal
Fixed Reader
Clothing
Library
Livestock
Retail

Mechanical Parameters

Dimensions: 122*84*20mm

Weight: 100gr

Electrical Parameters

Input Voltage: DC 3.5V~5V/9V
Operating Current: 150mA @ 5V (26 dBm Output，25°C), 110mA @ 5V (18 dBm Output，25°C)
Standby Mode Current: ＜80mA
Baud Rate: 115200 bps( default and recommended)，38400 bps

Communication Interface

USB: 2 USB2.0（Type-A）interfaces
Serial Port: 1 RS232 interface
Wiegand: Wiegand 26/34
GPIO: 2 Inputs

Application Environment

Operating Temp: -20℃~+70℃
Storage Temp: -20℃~+85℃
Humidity: 5%RH~95%RH（non-condensing）
Protection Grade: IP53

UHF

Protocol: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C
Frequency: 865~868MHz / Optional 902~928MHz
Output Power: 18~26dbm
Peak Inventory Speed: ＞50pcs/s
UHF Antenna: 2dbi ceramic antenna
Read Distance: 80~300cm
Tag Buffer Mode: 200 pcs @ 96 bit EPC
Output Power Precision: +/- 1dB
Output Power Flatness: +/- 0.2dB
Sensitivity: ＜-70dBm
Tag RSSI: Support

Supported Regions:

China, Korea, Malaysia, Japan
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208

Data Sheet - SB19 Masaüstü UHF RFID Okuyucu
