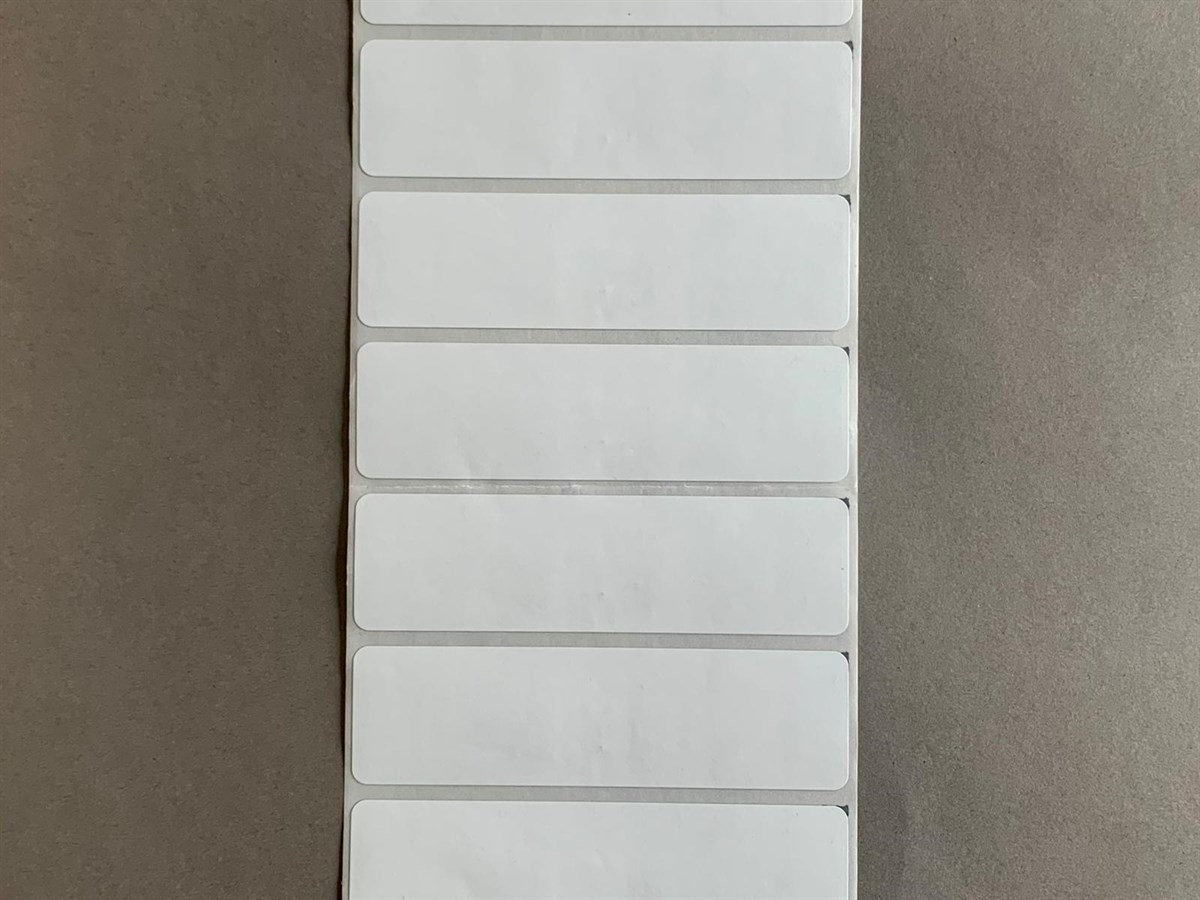

Smartrac Dogbone Monza R6 RFID Etiket
SMARTRAC’s DOGBONETM inlays and tags are designed for global
supply chain, industrial, RTI and sports timing applications, and offer
excellent performance in demanding environments and on different
materials.
DOGBONE inlays and tags have good tolerance against the detuning
effect of high-electric materials, providing effective global performance
even on difficult-to-tag materials. The inlay is size-optimized for 10 cm
/ 4 inch wide converted labels, and is available in dry, wet and paper tag
delivery formats.
They are available with the Impinj Monza R6 and R6-P chips that come
with an Autotune feature, which helps the DOGBONE product to work at
peak efficiency, even in rapidly changing environments. DOGBONE with
the Monza R6 chip offers unique TID and enables pre-serialized EPC.
Inlays with Monza R6-P offer additional features such as add-on user
memory and on-demand memory configuration as well as a kill function
and easy access control to change tag information for store data, if
required.
SMARTRAC’s inlays and tags are compliant with ISO 9001:2015 Quality
Management and ISO 14001:2015 Environmental Management, which
ensure a reliable and state-of-the-art product that meets a variety of
application needs, enhancing RFID usage for difficult-to-tag materials.
Overview
Operating Frequency: 860 - 960 MHz
Integrated Circuit (IC): Impinj Monza R6 & R6-P
Antenna Size: 94 x 24 mm (3.7 x 0.9 in)
Die-cut Size: 97 x 27 mm (3.8 x 1.1 in)
International Standards: EPC Class 1 Gen 2 ISO 18000-6C
Application Areas: Industry, Supply Chain Management, Sports Timing
