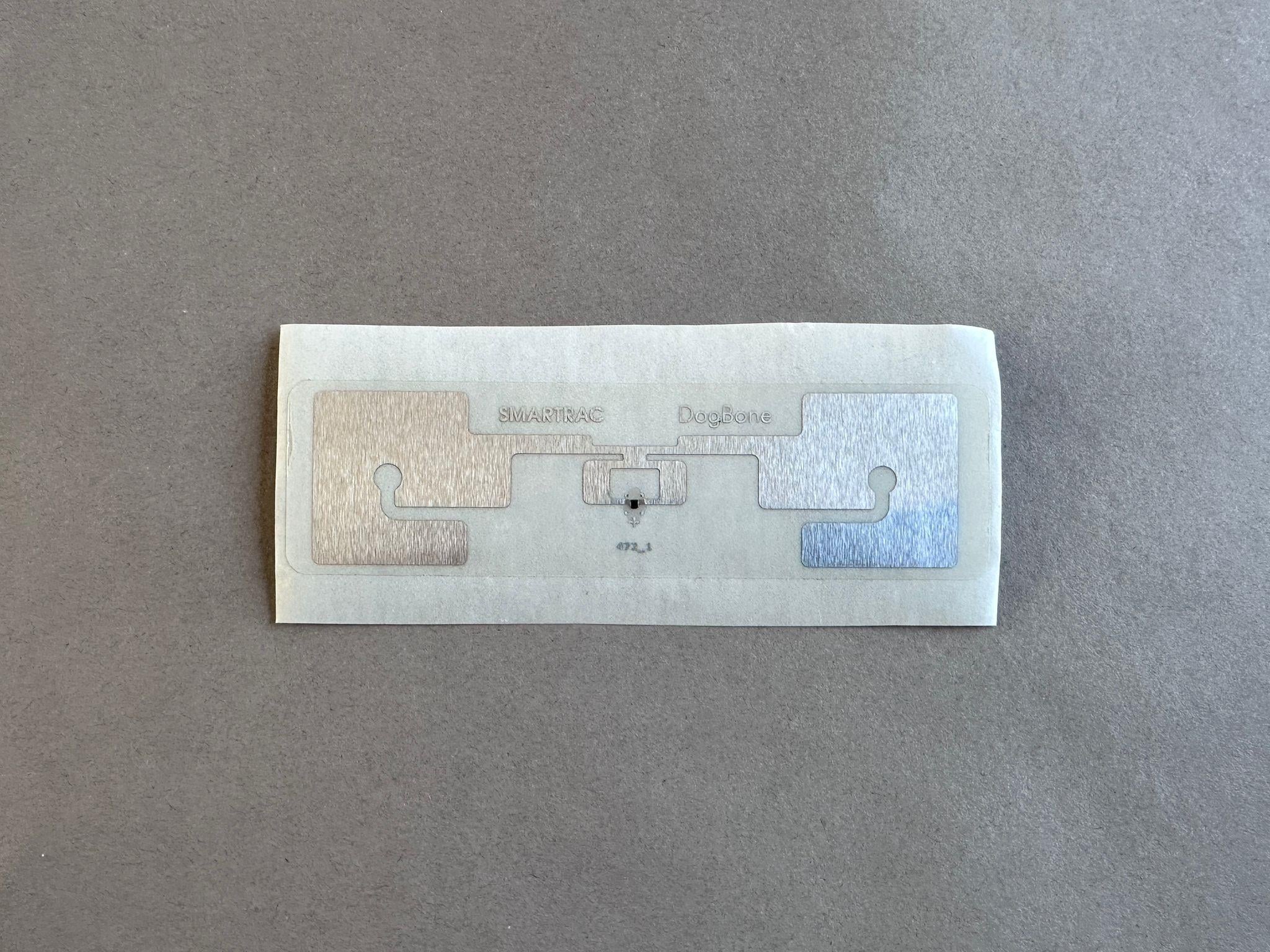

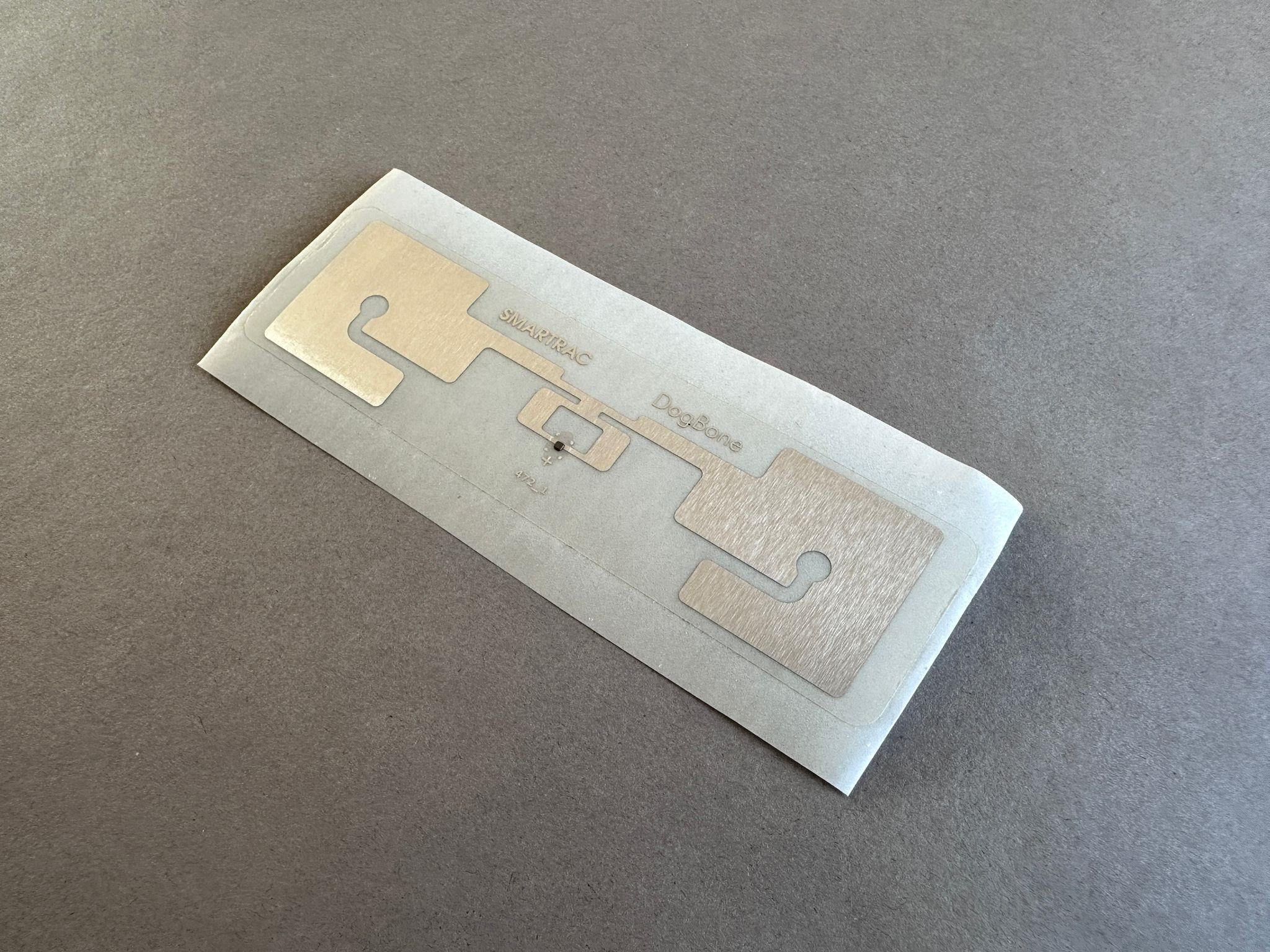

Smartrac Dogbone Temperature Sensor UHF RFID Etiket
Temperature level sensing inlay
Our state-of-the-art AD Temperature Sensor Dogbone® brings temperature detection
features to the company’s product range of passive sensor inlays and tags. It is designed to
measure temperature conditions, e.g. in cold chain management, and to detect crucial
temperature settings in many other demanding environments.
The AD Temperature Sensor Dogbone® is a passive UHF inlay equipped with Axzon
Magnus®S3. This RFID sensor inlay offers great performance, and accurately detects and
measures temperature and optionally moisture levels in the surrounding environment. The
temperature sensing range is available as single-point-calibration or two-point-calibration
according to customer preferences for measurement accuracy. It provides accurate read
results as determined by the customer’s selected calibration needs. Additionally, the IC
offers the option to read the sensor code and on-chip RSSI (Received Signal Strength
Indicator) value to detect how much power the IC is receiving from the reader.
The sensing information is digitized and wirelessly communicated to off-the-shelf readers,
and operates with specially developed software for temperature sensing.
The innovative AD Temperature Sensor Dogbone® is a passive UHF single-chip sensor
inlay solution that offers cost-efficiency and ease of implementation.
Overview
Frequency Band: UHF 860 - 960 MHz
Chip: Axzon Magnus S3

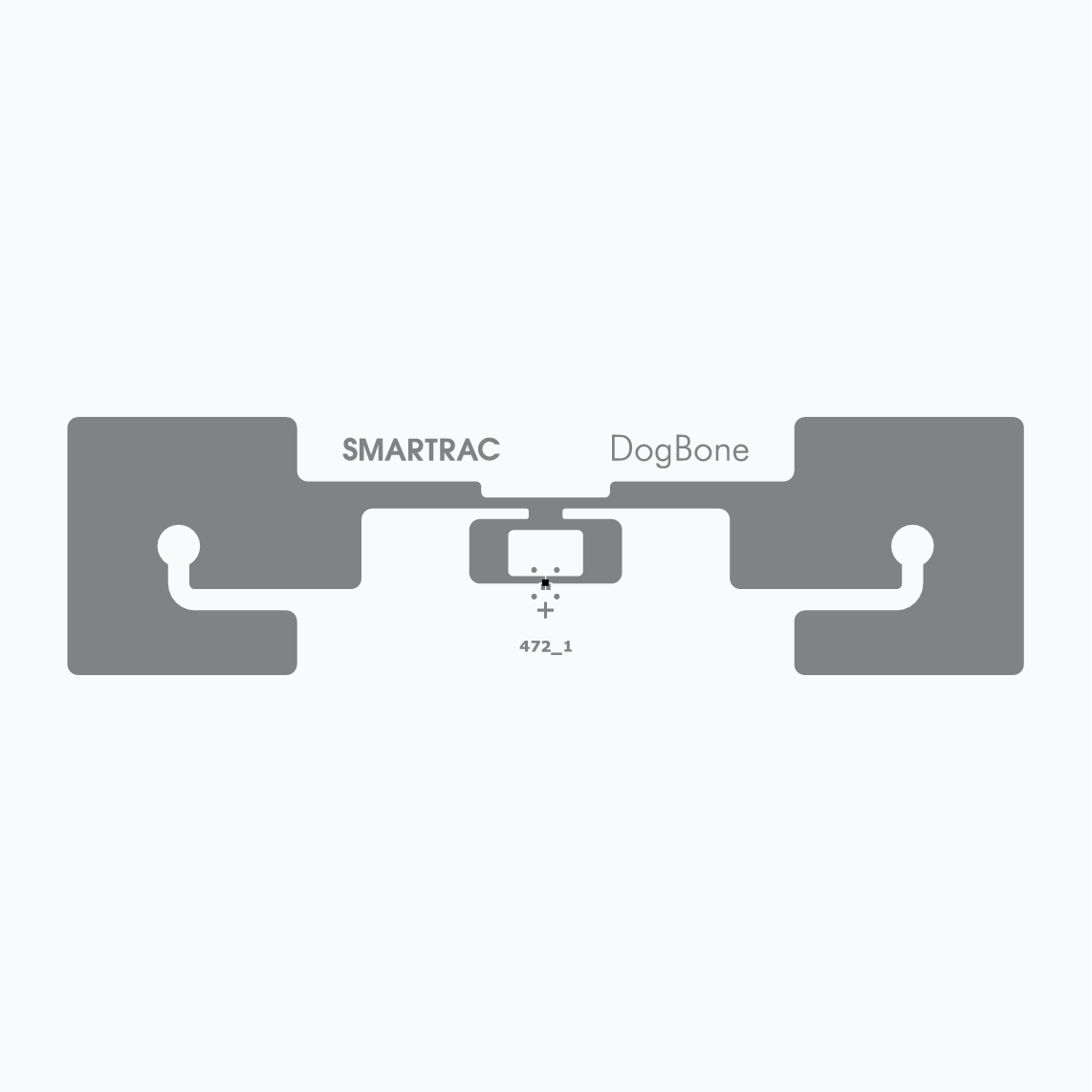

Antenna Dimensions: 89 x 24 mm / 3.50 x 0.90 in
International Standard: ISO 18000-6C, EPC Class 1 Gen 2
Industry Segments: Industrial Applications, Healthcare, Food
Applications: Temperature Sensing, Cold Chain Management
RoHS: EU Directive 2011/65/EU and Directive (EU) 2015/863
REACH: Regulation (EC) No. 1907/2006
Technical features
Read range: Chip Axzon Magnus S3
EPC and User Memory: 128-bit and 128-bit
TID Memory: Available
Product Code: 3005527 / IL-602948
Delivery Format: Wet inlay+

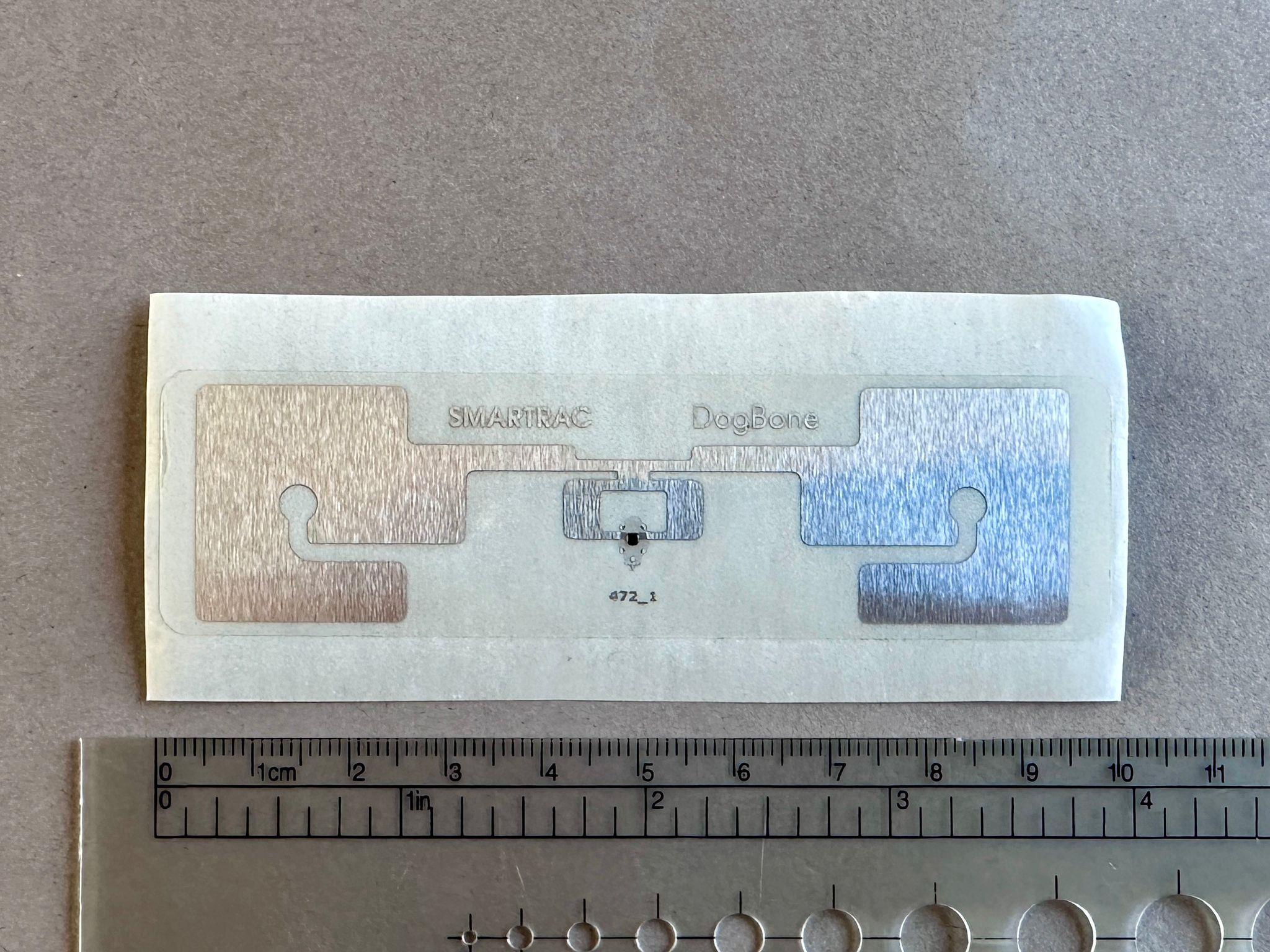

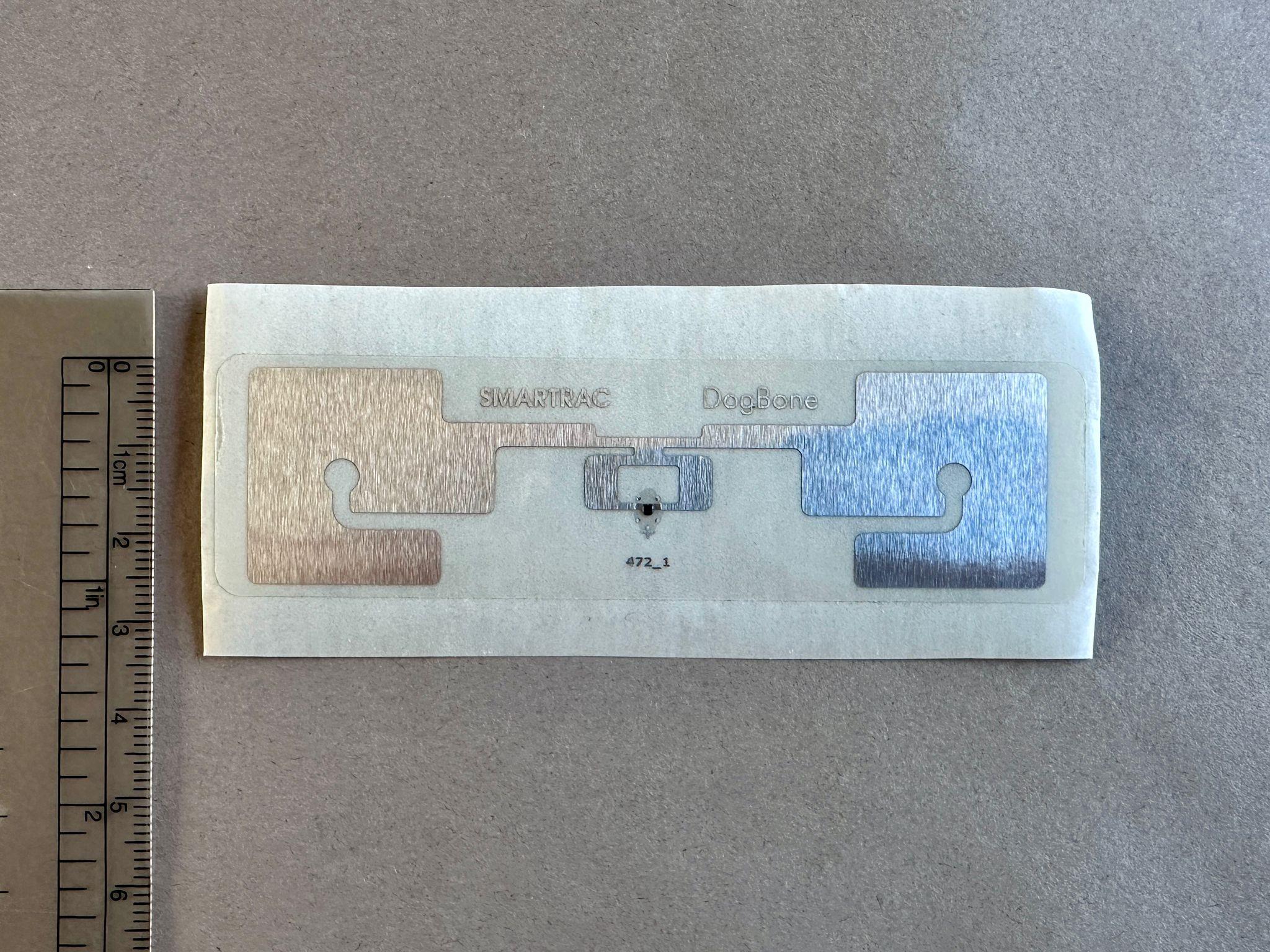

Die-Cut Dimension: 97 x 27 mm / 3.82 x 1.06 in
Inlay Substrate: Paper
Standard Pitch: 50 mm / 1.969 in
Web Width: 100 mm / 4 in
Core Size: 76 mm / 3 in
Quantity / Reel: 2,000 pcs/reel / 2,000 pcs/box
Operating Temperature: -40 °C to 85 °C / -40 °F to 185 °F
Certificates: ARC
